01 - Bezel Assy


02 - Door Assy


03 - Electrical Assy


04 - Interior Assy


05 - Page 2


06 - Page 3

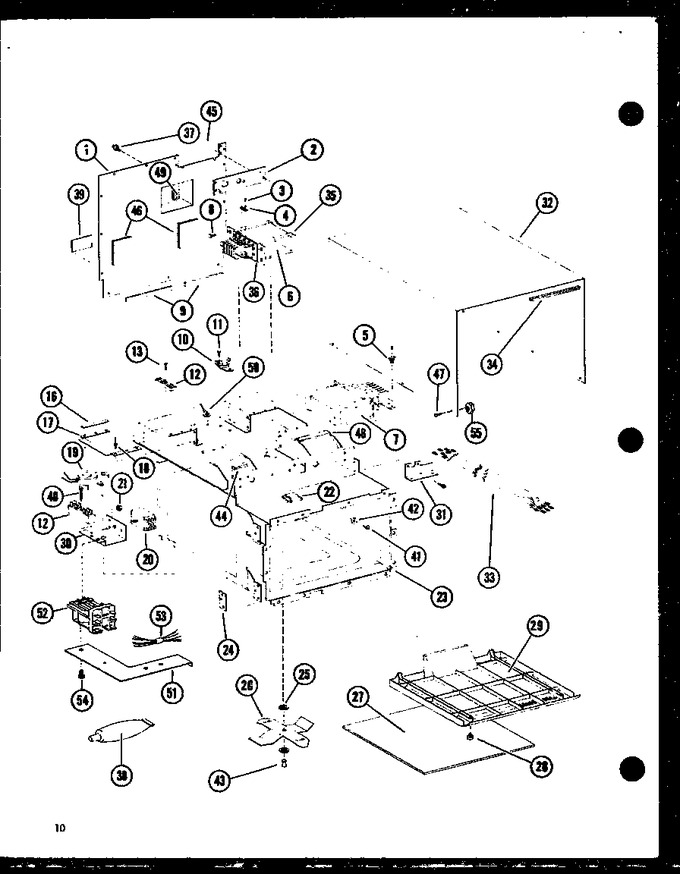

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8801102		Access Panel Weldment		Appelez-nous	-
3	M0234114		Screw		Appelez-nous	-
4	B5684102		Thermal Protector		Appelez-nous	-
5	B5684106		Thermal Protector		Appelez-nous	-
6	C8720503		Assembly, Isolator		Appelez-nous	-
7	C8720505		Assembly, Isolator, With Gaske		Appelez-nous	-
8	M0216517		Screw		Appelez-nous	-
9	A3030335		Gasket-per Ft		Appelez-nous	-
12	B5677203		Terminal Block		Appelez-nous	-
13	M0234117		Screw		Appelez-nous	-
16	B5718903		Gasket K		Appelez-nous	-
17	B5714101		Cover-isolator		Appelez-nous	-
18	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
19	B5602811		Motor		Appelez-nous	-
22	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
23	D7359403		Oven Wld		Appelez-nous	-
24	A3250301		Shim-hinge		Appelez-nous	-
25	A3109101		Washer		Appelez-nous	-
26	C8708601		Stirrer Blade (antenna)		Appelez-nous	-
27	B5748801		Tray, Oven		Appelez-nous	-
28	A3245601		Screw Retainer		Appelez-nous	-
29	D7396201		Grease Shield Kit		Appelez-nous	-
30	C8766002		Plate Relay Mtg		Appelez-nous	-
31	B5756101		Brkt Supt-interlock		Appelez-nous	-
33	D7380501		Wiring Harness		Appelez-nous	-
34	A3030301		Gasket (inch)		Appelez-nous	-
35	A3225401		Gasket K		Appelez-nous	-
36	A3225402		Gasket K		Appelez-nous	-
38	M0275501		Sealer		Appelez-nous	-
39	B5738501		Seal K		Appelez-nous	-
40	M0234117		Screw		Appelez-nous	-
41	M0234025		Screw		Appelez-nous	-
42	M0273612		Washer		Appelez-nous	-
43	M0114002		Clip		Appelez-nous	-
44	B5718906		Gasket		Appelez-nous	-
45	M0218128		Screw		Appelez-nous	-
46	A3205601		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
