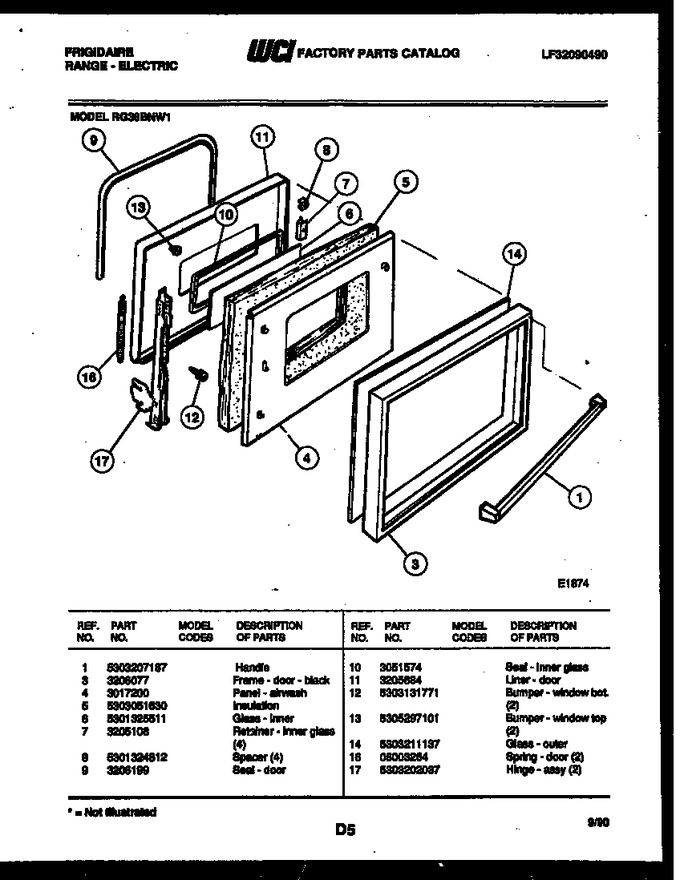

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207187 | Handle |
|
- | |||||
| 3 | 3206077 | Frame-door (black) |
|
- | |||||
| 4 | 3017200 | Panel, Airwash |
|
- | |||||
| 5 | 5303051630 | Insulation |
|
- | |||||
| 6 | 5301325511 | Glass, Inner |
|
- | |||||
| 7 | 3205108 | Retainer - Inner Glass (4) |
|
- | |||||
| 8 | 5301324812 | Spacer (4) |
|
- | |||||
| 9 | 3206199 | Seal-door |
|
- | |||||
| 10 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 11 | 3205684 | Liner-door |
|
- | |||||
| 12 | 5303131771 | Bumper - Window Bot. (2) |
|
- | |||||
| 13 | 5305297101 | Bumper-window Top (2) |
|
- | |||||
| 14 | 5303211137 | Glass-outer |
|
- | |||||
| 16 | 08003264 | Spring-oven Door |
|
- | |||||
| 17 | 5303202037 | Hinge-assy (2) |
|
- |
