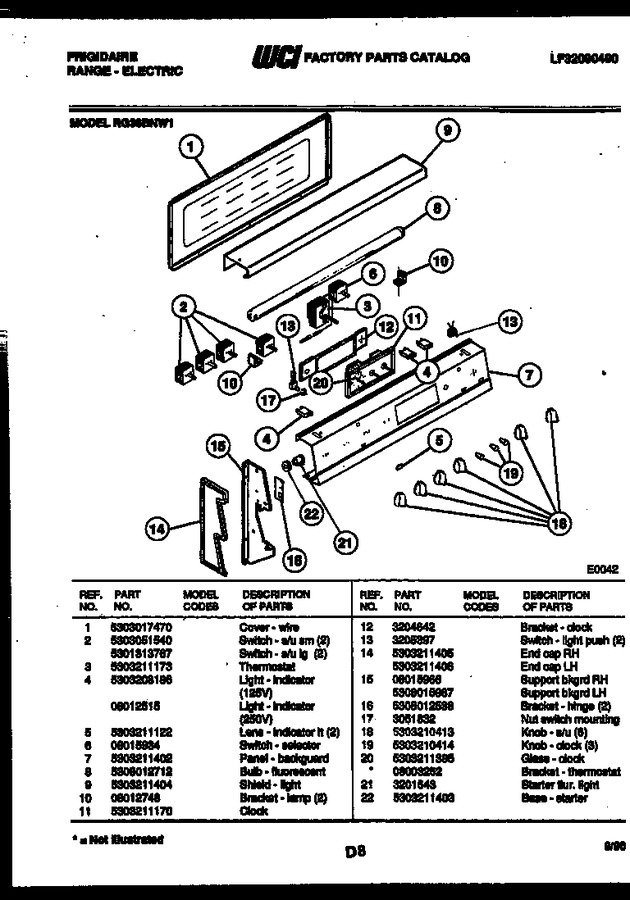

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5303211173 | Thermostat |
|
- | |||||
| 4 | 5303208186 | Light - Indicator (125v) |
|
- | |||||
| 5 | 5303211122 | Lens - Indicator Lt (2) |
|
- | |||||
| 6 | 08015934 | Switch, Selector |
|
- | |||||
| 7 | 5303211402 | Panel - Backguard |
|
- | |||||
| 8 | 5308012712 | Bulb-fluorescent |
|
- | |||||
| 9 | 5303211404 | Shield - Light |
|
- | |||||
| 10 | 08012748 | Bracket, Lamp (2) |
|
- | |||||
| 11 | 5303211170 | Clock |
|
- | |||||
| 12 | 3204642 | Bracket-clock |
|
- | |||||
| 13 | 3205397 | Switch - Light Push (2) |
|
- | |||||
| 14 | 5303211405 | End Cap-rh |
|
- | |||||
| 15 | 08015966 | Support Bkgrd Rh |
|
- | |||||
| 16 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 17 | 3051832 | Nut Switch Mounting |
|
- | |||||
| 18 | 5303210413 | Knob - S/u (6) |
|
- | |||||
| 19 | 5303210414 | Knob - Clock (3) |
|
- | |||||
| 20 | 5303211385 | Glass - Clock |
|
- | |||||
| 21 | 3201543 | Starter Flur. Light |
|
- | |||||
| 22 | 5303211403 | Base - Starter |
|
- | |||||
| 14A | 5303211406 | End Cap-lh |
|
- | |||||
| 15A | 5308015967 | Support Bkgrd Lh |
|
- | |||||
| 20A | 08003252 | Bracket - Thermostat |
|
- | |||||
| 2A | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 4A | 08012515 | Light - Indicator (250v) |
|
- |
