01 - Bezel Assy
02 - Control Assy
03 - Door Assy

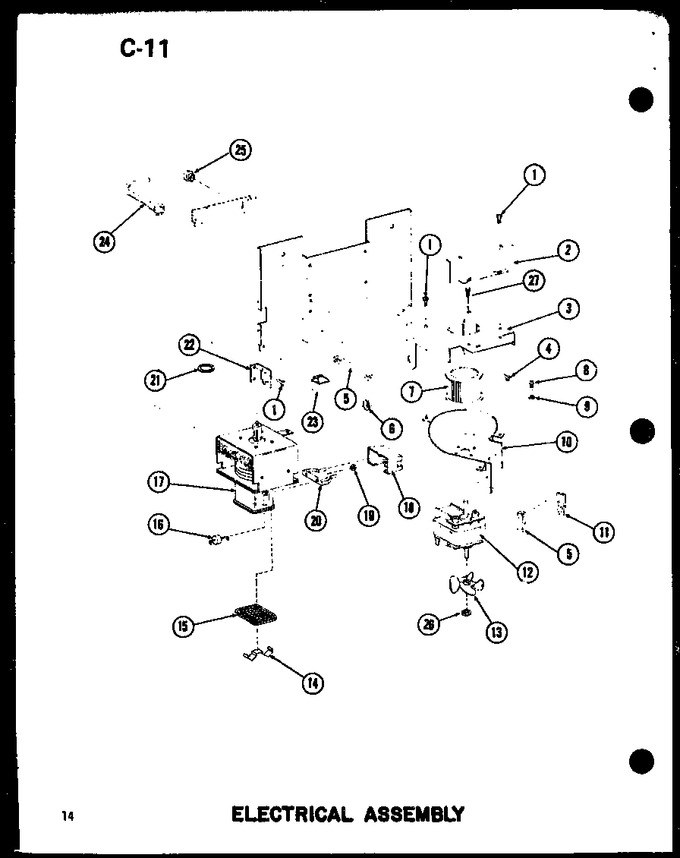

04 - Electrical Assy
05 - Interior Assy
06 - Oven Cavity Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0218116 | Screw |
|
- | |||||
| 2 | B5712301 | End Plate-plenum |
|
- | |||||
| 3 | C8707801 | Brkt-blower Scroll |
|
- | |||||
| 4 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 5 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 6 | A4554806 | Snap Bushing |
|
- | |||||
| 7 | C3670802 | Wheel, Blower |
|
- | |||||
| 8 | M0202642 | Screw |
|
- | |||||
| 9 | M0272605 | Washer |
|
- | |||||
| 10 | C8710701 | Wldmt-blower Scroll |
|
- | |||||
| 11 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 12 | C8711902 | Kit, Motor |
|
- | |||||
| 13 | B5706702 | Fan Blade-blower |
|
- | |||||
| 14 | A3145401 | Bale Strap K |
|
- | |||||
| 15 | B5647901 | Cover Cap Box K |
|
- | |||||
| 16 | A3148801 | Capacitor K |
|
- | |||||
| 17 | D7138201 | Assembly, Magnetron |
|
- | |||||
| 18 | B5656001 | Shield Hv K |
|
- | |||||
| 19 | M0281901 | Hex Nut |
|
- | |||||
| 20 | B5655902 | Clip K |
|
- | |||||
| 21 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 22 | B5716901 | Bracket-connector |
|
- | |||||
| 23 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 24 | B5715501 | Power Cord |
|
- | |||||
| 25 | M0371301 | Strain Relief |
|
- | |||||
| 26 | M0118901 | Clip |
|
- | |||||
| 27 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 |
