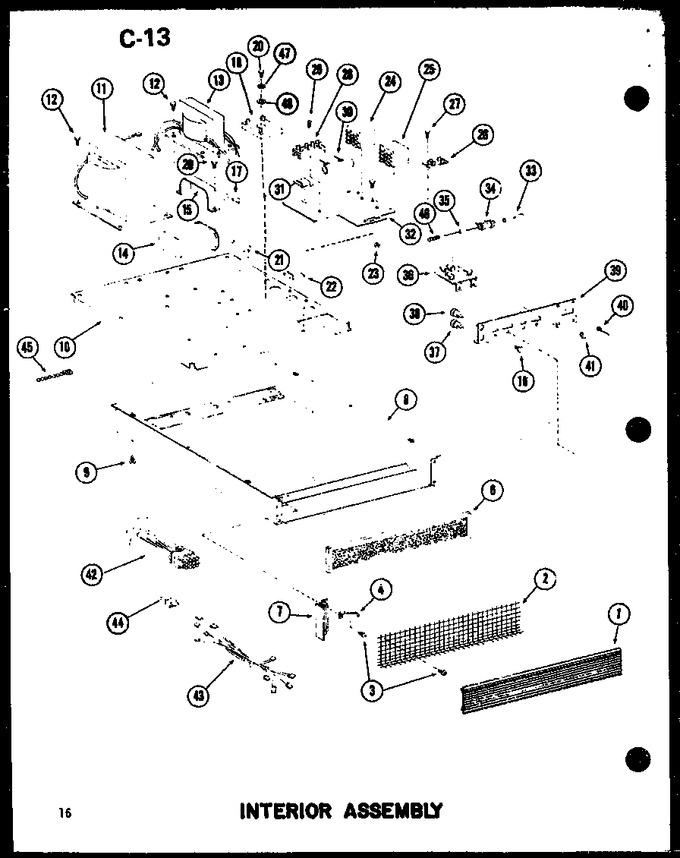

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708501		Grille Air Inlet		Appelez-nous	-
2	B5713901		Screen, Air Intake		Appelez-nous	-
3	M0230015		Screw		Appelez-nous	-
4	A3225202		Clip		Appelez-nous	-
4	A3225201		Clip		Appelez-nous	-
6	B5714801		Filter		Appelez-nous	-
7	B5714401		End Cap-grill		Appelez-nous	-
8	C8709102		Base Pan Wld		Appelez-nous	-
9	M0253543		Screw K		Appelez-nous	-
10	D7203601		Chassis		Appelez-nous	-
11	D7199701		Transformer-hv Plate		Appelez-nous	-
12	M0253543		Screw K		Appelez-nous	-
13	C8707501		Transformer-fil		Appelez-nous	-
14	C8790506		Capacitor Assy		Appelez-nous	-
15	A3184702		Bracket		Appelez-nous	-
16	M0218116		Screw		Appelez-nous	-
17	M0305202		Resistor A		Appelez-nous	-
18	B5672401		Rectifier		Appelez-nous	-
20	M0216517		Screw		Appelez-nous	-
21	M0305204		Resistor		Appelez-nous	-
22	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
23	WP488130		Nut   (Replaces: M0282007)				$ 6.27
24	C8709603		Relay-power		Appelez-nous	-
25	C8709602		Relay-surge		Appelez-nous	-
26	A3225501		Terminal Board		Appelez-nous	-
27	M0227501		Screw		Appelez-nous	-
28	B5677203		Terminal Block		Appelez-nous	-
29	M0234117		Screw		Appelez-nous	-
30	M0305007		Resistor, Relay A		Appelez-nous	-
31	M0104401		Clip-cord		Appelez-nous	-
32	B5713001		Bracket-relay		Appelez-nous	-
33	M0321701		Sleeve		Appelez-nous	-
34	M0305010		Resistor, 4 Ohm, 8 Watt		Appelez-nous	-
35	M0308102		Fuse		Appelez-nous	-
36	B5687401		Terminal Board		Appelez-nous	-
37	M0325401		Bushing,terminal		Appelez-nous	-
38	M0325402		Bushing,terminal		Appelez-nous	-
39	C8706601		Brkt-fuse Resistor		Appelez-nous	-
40	A4539601		Pop Rivet		Appelez-nous	-
41	M0110501		Clip K		Appelez-nous	-
42	D7227201		Wiring Harness		Appelez-nous	-
43	C8711201		Wiring Harness-hv		Appelez-nous	-
44	M0325501		Insulator, Pod K		Appelez-nous	-
45	M0321204		Wire Tie		Appelez-nous	-
46	M0321702		Sleeve K		Appelez-nous	-
47	M0270524		Washer		Appelez-nous	-
48	M0272503		Washer		Appelez-nous	-
