SELECT A DIAGRAM

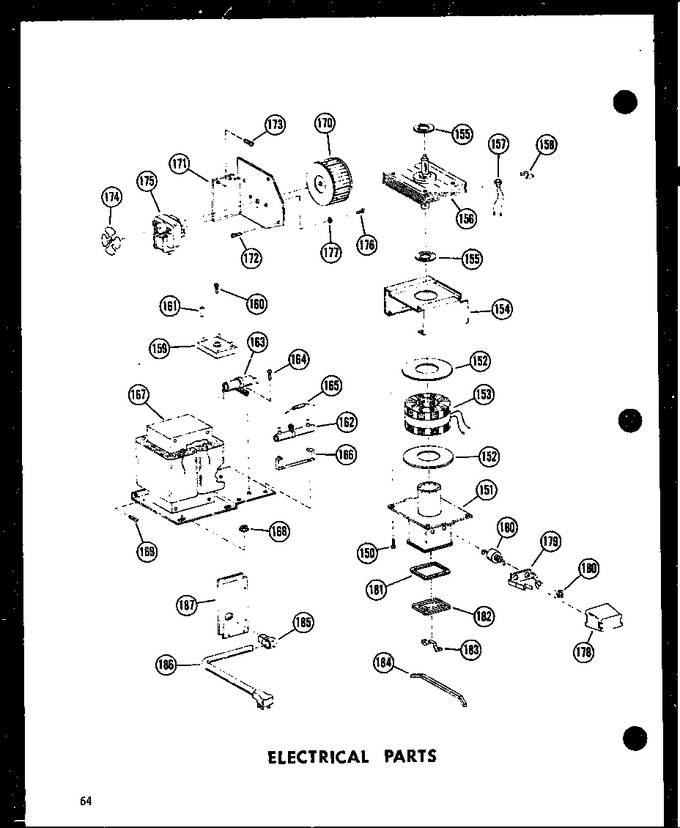

01 - Electrical Parts


02 - Exterior Parts


03 - Exterior Parts


04 - Interior Parts


05 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
150	M0216517		Screw		Appelez-nous	-
151	B5663702		Housing Plate Assy		Appelez-nous	-
152	M0274028		Washer		Appelez-nous	-
153	M0370602		Magnet Coil		Appelez-nous	-
154	C3596101		Support		Appelez-nous	-
155	B5621901		Washer		Appelez-nous	-
156	M0371101		Magnetron		Appelez-nous	-
157	M0370403		Thermal Prot		Appelez-nous	-
158	M0115802		Clip		Appelez-nous	-
159	A3165201		Rectifier-bridge K		Appelez-nous	-
160	M0218116		Screw		Appelez-nous	-
161	M0325301		Insulator, Term. K		Appelez-nous	-
162	M0305101		Resistor,adj		Appelez-nous	-
163	M0300201		Capacitor		Appelez-nous	-
164	M0218116		Screw		Appelez-nous	-
165	M0305201		Resistor		Appelez-nous	-
166	A3165001		Brkt-adj-resistor		Appelez-nous	-
167	C3639201		Transformer		Appelez-nous	-
168	WP487939		Nut   (Replaces: M0282015)				$ 6.95
169	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
170	B5660901		Blower Wheel		Appelez-nous	-
171	B5657501		Bracket,motor Mount		Appelez-nous	-
172	M0230017		Screw,tc		Appelez-nous	-
173	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
174	B5661801		Fan Blade		Appelez-nous	-
175	M0306701		Motor		Appelez-nous	-
176	M0202642		Screw		Appelez-nous	-
177	M0272605		Washer		Appelez-nous	-
178	B5656001		Shield Hv K		Appelez-nous	-
179	B5655902		Clip K		Appelez-nous	-
180	A3148801		Capacitor K		Appelez-nous	-
180	M0281901		Hex Nut		Appelez-nous	-
181	A3148701		Gasket		Appelez-nous	-
182	B5647901		Cover Cap Box K		Appelez-nous	-
183	A3145401		Bale Strap K		Appelez-nous	-
184	A3164702		Retainer Bar		Appelez-nous	-
185	M0371301		Strain Relief		Appelez-nous	-
186	B5674404		Cord-power		Appelez-nous	-
187	B5674101		Panel-serial Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
