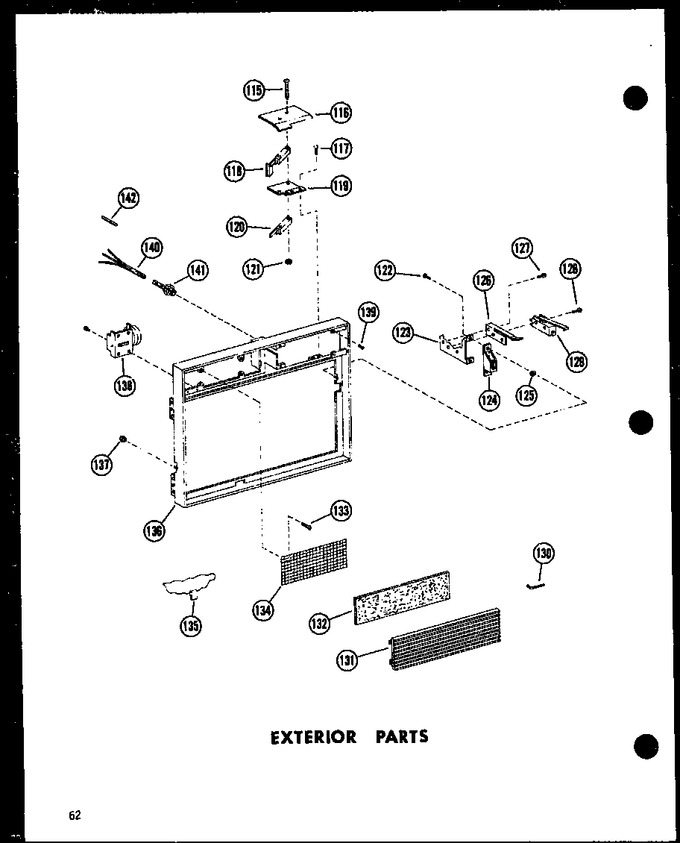

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
115	M0202525		Screw		Appelez-nous	-
116	B5685601		Pad Insulation A		Appelez-nous	-
117	M0230015		Screw		Appelez-nous	-
118	B5671601		Switch Wldmt		Appelez-nous	-
119	A3182501		Bracket, Switch		Appelez-nous	-
120	C3670001		Switch A		Appelez-nous	-
121	M0282005		Nut K				$ 7.07
122	M0230017		Screw,tc		Appelez-nous	-
123	B5675402		Bracket-latch		Appelez-nous	-
124	C3680201		Strike-latch		Appelez-nous	-
125	M0270524		Washer		Appelez-nous	-
126	A3186402		Spring-latch		Appelez-nous	-
127	M0232012		Screw		Appelez-nous	-
128	M0227525		Screw A-k		Appelez-nous	-
129	A3163406		Switch Preform		Appelez-nous	-
130	A4696103		Wrench-hex		Appelez-nous	-
131	C3678401		Grille, Air Inlet		Appelez-nous	-
132	A3094902		Filter		Appelez-nous	-
133	M0228016		Screw		Appelez-nous	-
134	B5672301		Screen-air Inlet		Appelez-nous	-
135	Y00000000		See Note Seal, Time Meter, Available From Service Representative		Appelez-nous	-
136	D7133403		Bezel, Outer Case		Appelez-nous	-
137	M0283401		Nut, Self Thread		Appelez-nous	-
138	Y00000000		See Note Time Meter, Available From Service Representative.		Appelez-nous	-
139	M0113006		Clip A		Appelez-nous	-
140	D7157601		Wiring Harness		Appelez-nous	-
141	R0164012		Socket Assy		Appelez-nous	-
142	A0304501		Connector A-k		Appelez-nous	-
