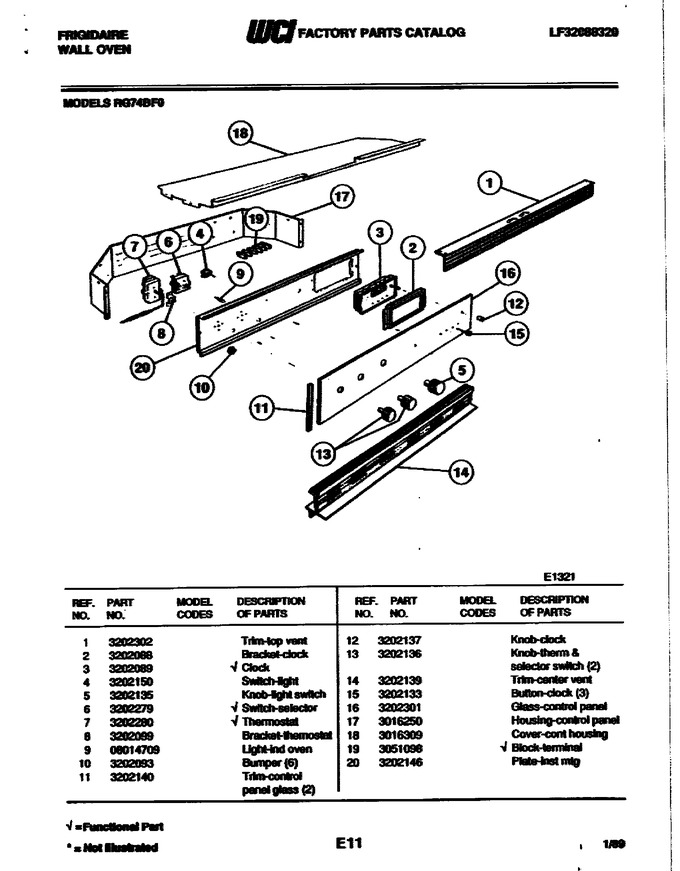

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202302		Trim-top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
4	3202150		Switch-light		Appelez-nous	-
5	3202135		Knob-light Switch				$ 48.67
8	3202099		Bracket-thermostat		Appelez-nous	-
9	08014709		Light-ind Oven		Appelez-nous	-
10	3202093		Bumper		Appelez-nous	-
11	3202140		Trim-control Panel Glass		Appelez-nous	-
12	3202137		Knob-clock		Appelez-nous	-
13	3202136		Knob-therm & Selector Switch (2)				$ 167.04
14	3202139		Trim, Center Vent		Appelez-nous	-
15	3202133		Button, Clock (3)		Appelez-nous	-
16	3202301		Glass, Control Panel		Appelez-nous	-
17	3016250		Housing-control Panel		Appelez-nous	-
18	3016309		Cover - Cont Housing		Appelez-nous	-
20	3202146		Plate-inst Mtg		Appelez-nous	-
F19	3051098		Block Terminal		Appelez-nous	-
F3	3202089		Clock		Appelez-nous	-
F6	3202279		Switch, Selector				$ 181.86
F7	3202280		Thermostat		Appelez-nous	-
