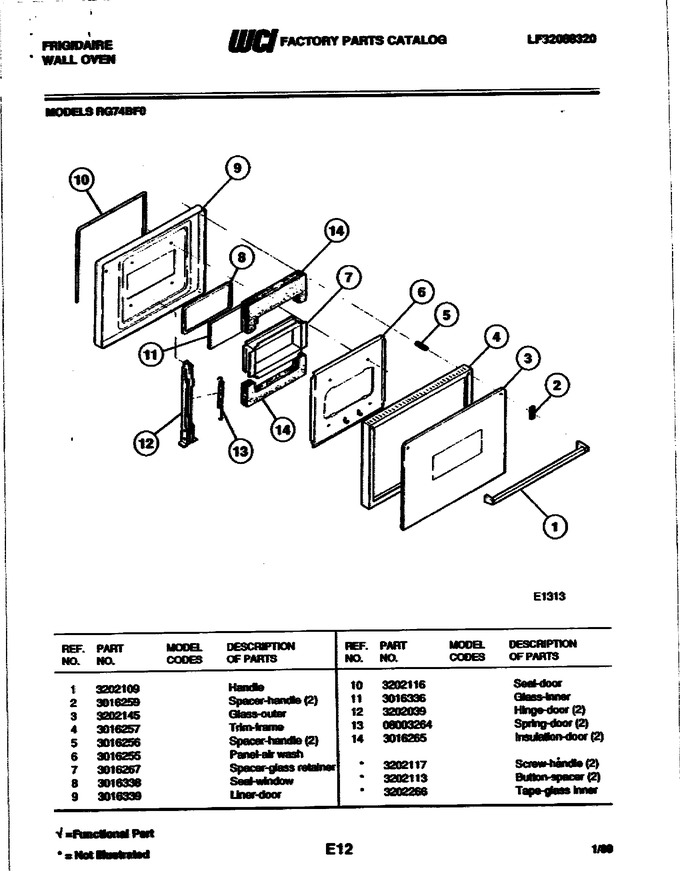

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202109		Handle		Appelez-nous	-
2	3016259		Spacer-handle		Appelez-nous	-
3	3202145		Glass-outer		Appelez-nous	-
4	3016257		Trim-frame		Appelez-nous	-
5	3016256		Spacer-handle		Appelez-nous	-
6	3016255		Panel - Air Wash		Appelez-nous	-
7	3016267		Spacer-glass Retainer		Appelez-nous	-
8	3016338		Seal-window				$ 43.20
9	3016339		Liner-door		Appelez-nous	-
10	3202116		Seal-door		Appelez-nous	-
11	3016336		Glass-inner		Appelez-nous	-
12	3202039		Hinge-door (2)		Appelez-nous	-
13	08003264		Spring-oven Door		Appelez-nous	-
14	3016265		Insulation-door		Appelez-nous	-
NI	3202117		Screw Handle		Appelez-nous	-
NI	3202113		Button-spacer		Appelez-nous	-
NI	3202266		Tape-glass Inner		Appelez-nous	-
