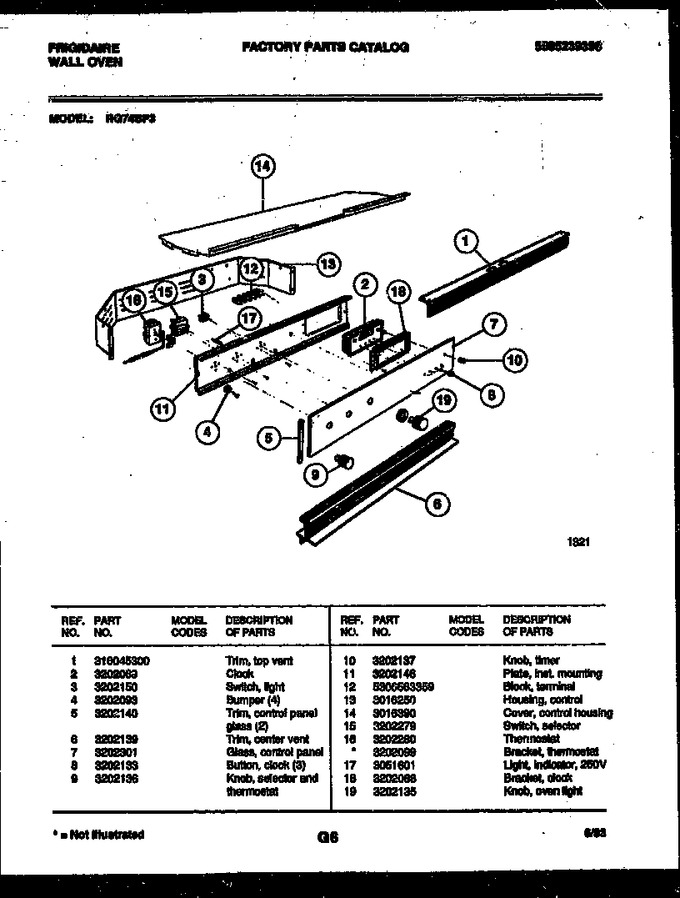

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316045300 | Trim, Top Vent |
|
- | |||||
| 2 | 3202089 | Clock |
|
- | |||||
| 3 | 3202150 | Switch-light |
|
- | |||||
| 4 | 3202093 | Bumper (4) |
|
- | |||||
| 5 | 3202140 | Trim, Control Panel Glass (2) |
|
- | |||||
| 6 | 3202139 | Trim, Center Vent |
|
- | |||||
| 7 | 3202301 | Glass, Control Panel |
|
- | |||||
| 8 | 3202133 | Button, Clock (3) |
|
- | |||||
| 9 | 3202136 | Knob, Selector And Thermostat |
|
$ 167.04 | |||||
| 10 | 3202137 | Knob, Timer |
|
- | |||||
| 11 | 3202146 | Plate, Inst. Mounting |
|
- | |||||
| 12 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 13 | 3016250 | Housing, Control |
|
- | |||||
| 14 | 3016390 | Cover, Control Housing |
|
- | |||||
| 15 | 3202279 | Switch, Selector |
|
$ 181.86 | |||||
| 16 | 3202280 | Thermostat |
|
- | |||||
| 17 | 3051601 | Light, Indicator, 250v |
|
- | |||||
| 18 | 3202088 | Bracket-clock |
|
- | |||||
| 19 | 3202135 | Knob-oven Light |
|
$ 48.67 | |||||
| 16A | 3202099 | Bracket, Thermostat (non-illustrated) |
|
- |
