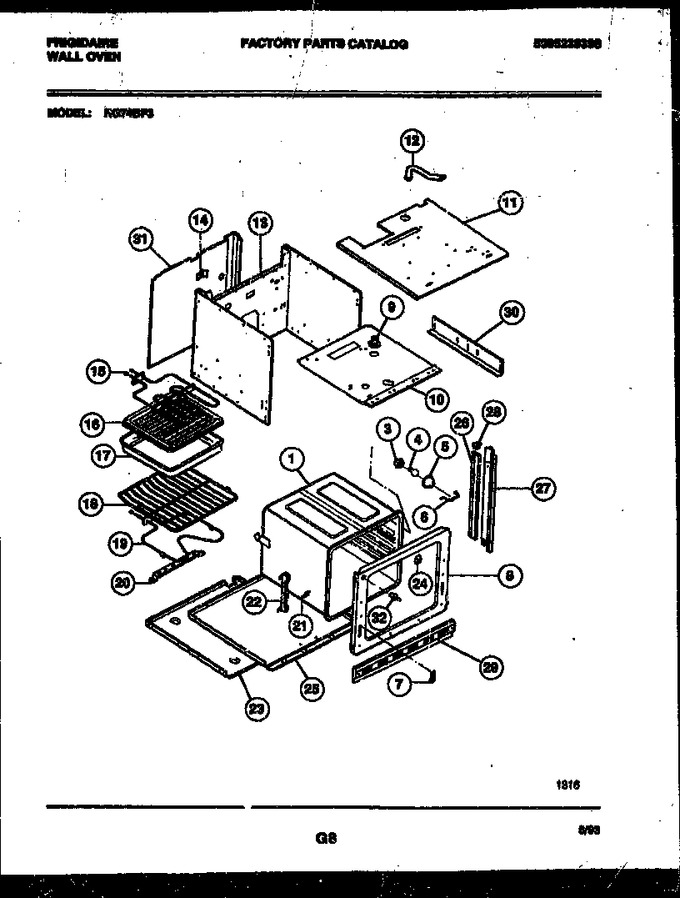

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296870		Liner-oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	40A15		Bulb   (Replaces: 5303299720)			Immediately	$ 1.98
5	5304524341		Lens   (Replaces: 3201911)			Immediately	$ 15.61
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	5303299859		Frame, Front		Appelez-nous	-
9	5303206498		Vent-tube Assembly		Appelez-nous	-
10	3016273		Shield, Insulation		Appelez-nous	-
11	3202306		Wrapper, Top		Appelez-nous	-
12	3016301		Duct - Vent Tube		Appelez-nous	-
13	3016275		Wrapper		Appelez-nous	-
14	3016281		Spring, Oven (2)		Appelez-nous	-
15	5303016247		Element, Broil				$ 223.97
16	5303296872		Insert-broiler Pan		Appelez-nous	-
17	5303292159		Pan-broiler		Appelez-nous	-
18	318345216		Rack, Offset   (Replaces: 5303296873)				$ 103.90
19	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
20	3016248		Support, Broil Element		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Channel, Hinge				$ 58.22
23	3016277		Wrapper, Base		Appelez-nous	-
24	3016313		Button, Plug		Appelez-nous	-
25	3202304		Shield, Insulation		Appelez-nous	-
26	3016279		Trim, Inner, Rh		Appelez-nous	-
27	5303276673		Trim-side Outer (2)		Appelez-nous	-
28	3202142		Trim, Cap, Rh		Appelez-nous	-
29	5303299856		Trim, Base		Appelez-nous	-
30	3016278		Support, Height (2)		Appelez-nous	-
31	3016314		Cover, Wire		Appelez-nous	-
32	5301314211		Switch-oven Light				$ 95.29
*78796	5303284616		Thermostat Bulb Clip				$ 9.86
*78796	3016323		Insulation, Wrapper		Appelez-nous	-
*78796	3016319		Insulation-back		Appelez-nous	-
*78797	19100180210		Wiring Diagram (not For Purchase)		Appelez-nous	-
26A	3016280		Trim, Inner, Lh		Appelez-nous	-
28A	3202143		Trim, Cap, Lh		Appelez-nous	-
