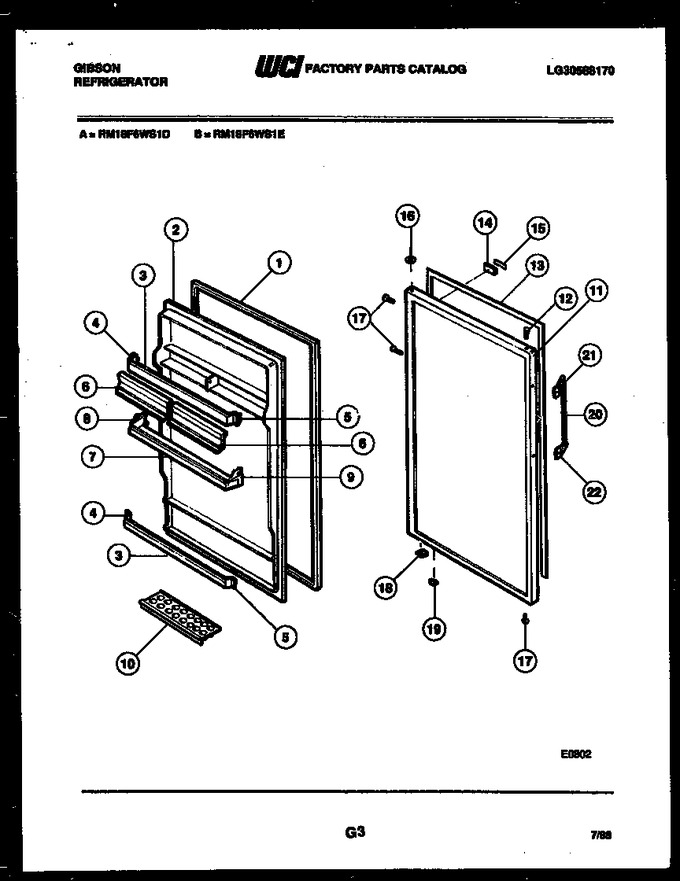

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G186932-10 | Gasket-refrigerator |
|
- | |||||
| 2 | G169860-02 | Panel-inner Door |
|
- | |||||
| 3 | G162887-19 | Rack-upper And Lower (3) |
|
- | |||||
| 4 | G171023-02 | Support-ls (3) |
|
- | |||||
| 5 | G171024-02 | Support-rs (3) |
|
- | |||||
| 6 | G162855-58 | Dairy Door |
|
- | |||||
| 7 | G164109-22 | Rack-shelf-center (2) |
|
- | |||||
| 8 | G163780-03 | End Cap-ls (2) |
|
- | |||||
| 9 | G163781-03 | End Cap-rs (2) |
|
- | |||||
| 10 | G165721-04 | Egg Tray |
|
- | |||||
| 11 | 3916084 | Door-white |
|
- | |||||
| 11 | 3916088 | Door-almond |
|
- | |||||
| 11 | 3916087 | Door-coffee |
|
- | |||||
| 11 | 3916086 | Door-wheat |
|
- | |||||
| 11 | 3916085 | Door-avocado |
|
- | |||||
| 12 | G169332-01 | Button Plug, White |
|
- | |||||
| 12 | G169332-09 | Button Plug, Wheat |
|
- | |||||
| 12 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 12 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 12 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 13 | G167404-11 | Trim-door |
|
- | |||||
| 14 | G175117-02 | Nameplate-frame |
|
- | |||||
| 15 | G188378-03 | Label-upper |
|
- | |||||
| 15 | 3019041 | Label-lower |
|
- | |||||
| 16 | G183138 | Bearing, Hinge (4) |
|
- | |||||
| 17 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 17 | G162977-11 | Button Plug-almond |
|
- | |||||
| 17 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 17 | G162977-01 | Button Plug-white |
|
- | |||||
| 17 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 18 | G155072 | Door Stop |
|
- | |||||
| 19 | G165376 | Bumper - Light Switch |
|
- | |||||
| 20 | 3019042 | Grip-handle |
|
- | |||||
| 21 | G175809 | Handle-end Top |
|
- | |||||
| 22 | G175810 | Handle-end Bottom |
|
- | |||||
| *10154 | G185566 | Screw |
|
- | |||||
| 14A | G153407-60 | Tape-nameplate Mtg (non-illustrated) |
|
- | |||||
| 18A | G185566 | Screw |
|
- | |||||
| 19A | G162585 | Screw |
|
- | |||||
| 2A | G162585 | Screw |
|
- | |||||
| 7A | G101890 | Rivet |
|
- | |||||
| 7B | G167115 | Screw-rack Mtg (4) (non-illustrated) |
|
- |
