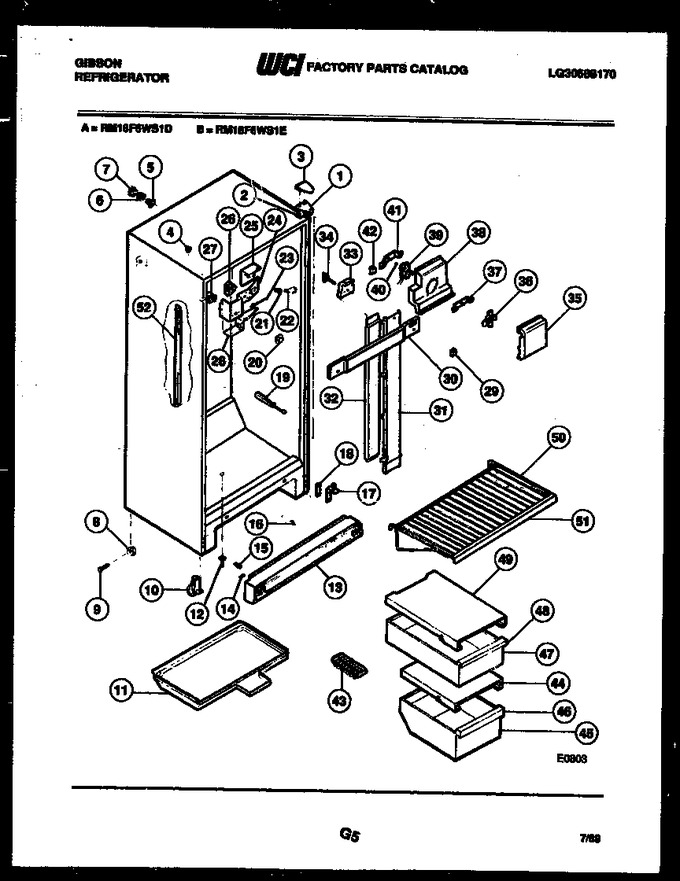

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183714 | Hinge-top |
|
- | |||||
| 3 | G183558-11 | Hinge Cover-almond |
|
- | |||||
| 3 | G183558-10 | Hinge Cover Coffee |
|
- | |||||
| 3 | G183558-09 | Hinge Cover-wheat |
|
- | |||||
| 3 | G183558-08 | Hinge Cover-avocado |
|
- | |||||
| 3 | G183558-01 | Hinge Cover-white |
|
- | |||||
| 4 | G174747-08 | Button, Plug, Avocado |
|
- | |||||
| 4 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 4 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 4 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 4 | G174747-01 | Button-plug-white |
|
- | |||||
| 5 | G174733 | Ferrule, Inner |
|
- | |||||
| 6 | G85642 | Tube, Rubber |
|
- | |||||
| 7 | G174734 | Ferrule Outer |
|
- | |||||
| 8 | G162808 | Roller Rear (2) |
|
- | |||||
| 9 | G162809 | Pin Roller (2) |
|
- | |||||
| 10 | G186731 | Roller-front (2) |
|
- | |||||
| 11 | G174360 | Defrost Pan |
|
- | |||||
| 12 | G164843 | Drain Tube |
|
- | |||||
| 13 | G161904-01 | Grille/kickplate |
|
- | |||||
| 14 | G154397 | Plug, Grille |
|
- | |||||
| 15 | G162994 | Clip Grille |
|
- | |||||
| 16 | G149762 | Light Switch |
|
- | |||||
| 17 | G162383 | Hinge-bottom |
|
- | |||||
| 18 | G162903 | Shim-bot Hinge (3) |
|
- | |||||
| 19 | G170001-01 | Damper-meat Pan |
|
- | |||||
| 20 | G162881-10 | Knob-temp Control |
|
- | |||||
| 21 | G168510 | Light Socket |
|
- | |||||
| 22 | G165723 | Light Bulb |
|
- | |||||
| 23 | G170287 | Housing-cap Tube |
|
- | |||||
| 24 | G169812 | Bracket - Control Mtg. |
|
- | |||||
| 25 | G170465 | Light Deflector |
|
- | |||||
| 26 | G187464 | Timer |
|
- | |||||
| 27 | G162205-07 | Control-temperature |
|
- | |||||
| 28 | G169749 | Cover-mtg Bracket |
|
- | |||||
| 29 | G169950-01 | Knob-damper Control |
|
- | |||||
| 30 | G169949-09 | Light Shield |
|
- | |||||
| 31 | G169836 | Air Duct |
|
- | |||||
| 32 | 3015056 | Insulation-duct Lower |
|
- | |||||
| 33 | 3015057 | Insulation-duct Upper |
|
- | |||||
| 34 | G169850 | Damper - Air Duct |
|
- | |||||
| 35 | G169608 | Fan Cover |
|
- | |||||
| 36 | G174705 | Fan Blade |
|
- | |||||
| 37 | G185302 | Bracket-front |
|
- | |||||
| 38 | G169597 | Housing Fan Motor |
|
- | |||||
| 39 | G158289 | Motor-fan |
|
- | |||||
| 40 | G157666 | Bushing-motor Mtg (2) |
|
- | |||||
| 41 | G185303 | Bracket-rear |
|
- | |||||
| 42 | G164571 | Connector Bracket |
|
- | |||||
| 43 | G156376-13 | Ice Cube Tray (2) |
|
- | |||||
| 44 | G163916-01 | Cover-lower Pan |
|
- | |||||
| 45 | G179708-06 | Storage Pan-lower |
|
- | |||||
| 46 | G177343-13 | Trim-lower Pan |
|
- | |||||
| 47 | G179707-06 | Storage Pan-upper |
|
- | |||||
| 48 | G177343-14 | Trim-upper Pan |
|
- | |||||
| 49 | G163915-01 | Cover-upper Pan |
|
- | |||||
| 50 | 3019043 | Shelf (4) |
|
- | |||||
| 51 | G172410-02 | Trim-shelf (4) |
|
- | |||||
| 52 | G170694 | Channel, Shelf Mtg (2) |
|
- | |||||
| 11A | G168866 | Tape-pan (non-illustrated) |
|
- | |||||
| 17A | G101970 | Washer-hinge Pin (non-illustrated) |
|
- | |||||
| 17B | G99167 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 17C | G141673 | Nut |
|
- | |||||
| 18A | G142361 | Pin |
|
- | |||||
| 18B | G77210 | Speed Nut (2) (non-illustrated) |
|
- | |||||
| 19A | G166567 | Screw-damper Mtg (non-illustrated) |
|
- | |||||
| 1A | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 1B | G167103 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 24A | G170565 | Insulation-cont Box (non-illustrated) |
|
- | |||||
| 26A | G105289 | Screw |
|
- | |||||
| 26B | G141851 | Screw-ground (2) (non-illustrated) |
|
- | |||||
| 27A | G107080 | Screw |
|
- | |||||
| 27B | G177781 | Wiring Harness-cont (non-illustrated) |
|
- | |||||
| 2G | G183861 | Shim Top Hinge |
|
- | |||||
| 30A | G172635-04 | Label-freezer Control (non-illustrated) |
|
- | |||||
| 30B | G172637-04 | Label-refr Control (non-illustrated) |
|
- | |||||
| 34A | G171508 | Push Nut-damper Mounting (non-illustrated) |
|
- | |||||
| 35A | G166567 | Screw-cover Mtg (non-illustrated) |
|
- | |||||
| 41A | G162585 | Screw |
|
- | |||||
| 49A | G180108-06 | Gasket-pan Cover (non-illustrated) |
|
- | |||||
| 9A | G162662 | Push Nut-pin (2) (non-illustrated) |
|
- |
