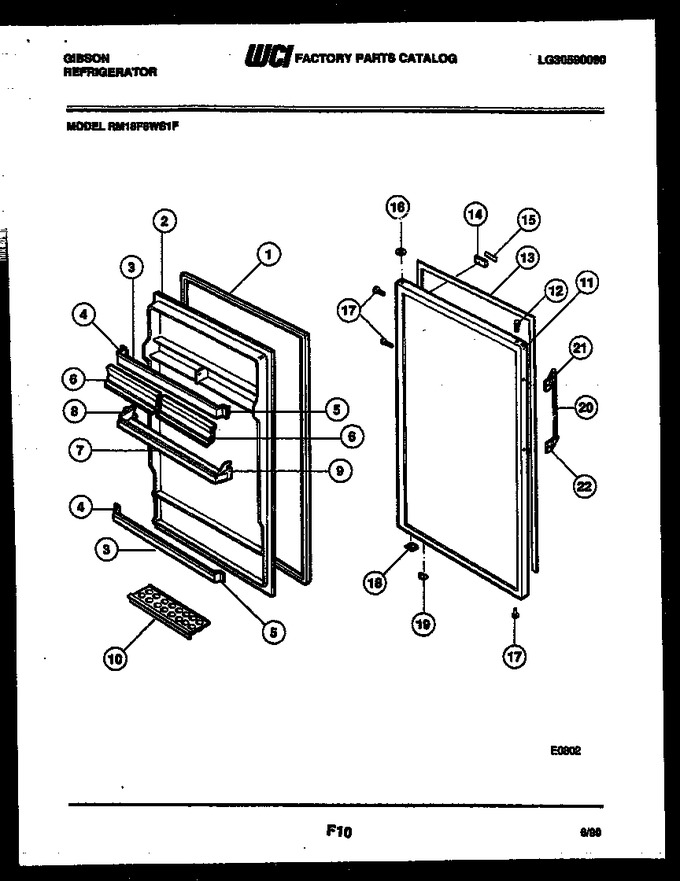

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303007357 | Gasket-refrigerator |
|
- | |||||
| 2 | G169860-02 | Panel-inner Door |
|
- | |||||
| 3 | G162887-22 | Rack-upper And Lower (3) |
|
- | |||||
| 4 | 5303206225 | Support-lh (3) |
|
- | |||||
| 5 | 5303205651 | Support-rh (3) |
|
- | |||||
| 6 | 5316285558 | Dairy Door (2) |
|
- | |||||
| 7 | 5303206689 | Rack-shelf-center (2) |
|
- | |||||
| 8 | 5303206683 | End Cap-lh (2) |
|
- | |||||
| 9 | 5303206682 | End Cap-rh (2) |
|
- | |||||
| 10 | G165721-04 | Egg Tray |
|
- | |||||
| 11 | 3916084 | Door-white |
|
- | |||||
| 11 | 3916088 | Door-almond |
|
- | |||||
| 11 | 3916087 | Door-coffee |
|
- | |||||
| 11 | 3916086 | Door-wheat |
|
- | |||||
| 11 | 3916085 | Door-avocado |
|
- | |||||
| 12 | 5303001657 | Plug-hinge Hole-cofe |
|
- | |||||
| 12 | 5308000175 | Plug-hinge Hole-avoc |
|
- | |||||
| 12 | 5308000134 | Plug-hinge Hole-white |
|
$ 5.62 | |||||
| 12 | 5308000176 | Plug-hinge Hole-weat |
|
- | |||||
| 12 | 5303001308 | Plug-hinge Hole-almd |
|
- | |||||
| 13 | G167404-11 | Trim-door |
|
- | |||||
| 14 | 5317511702 | Nameplate - Frame |
|
- | |||||
| 15 | G188378-03 | Label-upper |
|
- | |||||
| 15 | 3019041 | Label-lower |
|
- | |||||
| 16 | 5308012007 | Bearing-hinge (4) |
|
- | |||||
| 17 | 5308000180 | Plug - Wheat |
|
- | |||||
| 17 | 5308000178 | Plug - Coffee |
|
- | |||||
| 17 | 5308000179 | Plug - Avocado |
|
- | |||||
| 17 | 240494001 | Plug - White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 17 | 5308000181 | Plug - Almond |
|
- | |||||
| 18 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 19 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 20 | 3019042 | Grip-handle |
|
- | |||||
| 21 | 5303001014 | Handle - End Top |
|
- | |||||
| 22 | 5303001015 | Handle - End Bottom |
|
$ 74.29 | |||||
| *27216 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *27216 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 14A | 5315340760 | Tape-nameplate Mtg (non-illustrated) |
|
- | |||||
| 18A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 19A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 2A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 2B | 5303209636 | Screw-pnl Mtg-8-15(a) X 5/8 (26) (non-illustrated) |
|
- |
