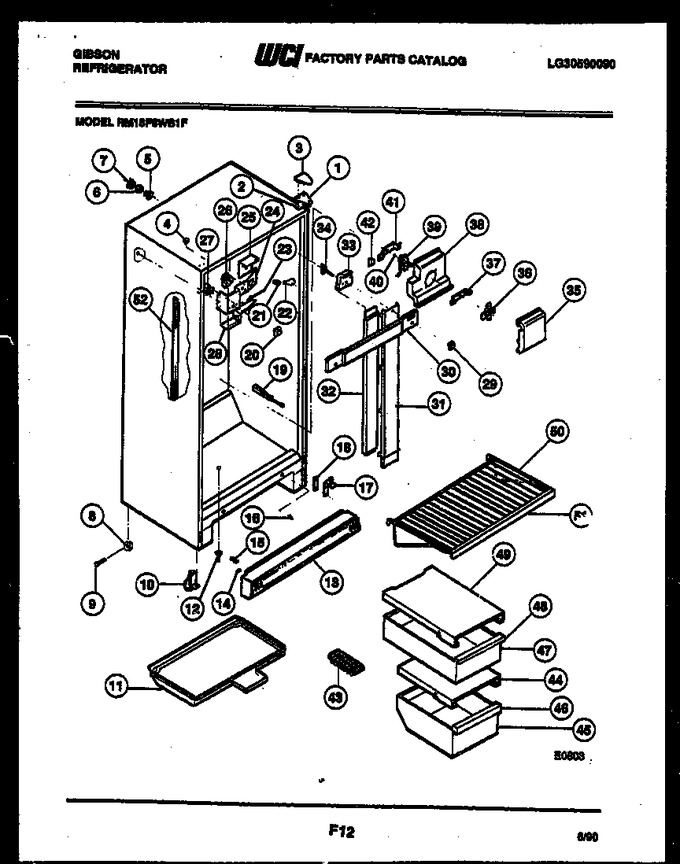

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012843 | Hinge-top |
|
$ 71.47 | |||||
| 2 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 3 | 5308012933 | Hinge Cover, Almond |
|
- | |||||
| 3 | 5303001666 | Hinge Cover, Coffee |
|
- | |||||
| 3 | 5303001665 | Hinge Cover, Wheat |
|
- | |||||
| 3 | 5303001664 | Hinge Cover, Avocado |
|
- | |||||
| 3 | 5308012820 | Hinge Cover, White |
|
- | |||||
| 4 | 5303001677 | Plug-hinge Hole-avocado |
|
- | |||||
| 4 | 5303001678 | Plug-hinge Hole-wheat |
|
- | |||||
| 4 | 5303001679 | Plug-hinge Hole-coffee |
|
- | |||||
| 4 | 5303001389 | Plug-hinge Hole-almond |
|
- | |||||
| 4 | 5303001388 | Plug-hinge Hole-white |
|
$ 2.60 | |||||
| 5 | 5303001286 | Ferrule-inner |
|
- | |||||
| 6 | 5303001198 | Tube-rubber |
|
- | |||||
| 7 | 5303001287 | Ferrule-outer |
|
- | |||||
| 8 | 5308000265 | Roller-rear (2) |
|
- | |||||
| 9 | 5308000266 | Pin, Roller (2) |
|
- | |||||
| 10 | 5308000118 | Roller-front (2) |
|
- | |||||
| 11 | 5308008724 | Defrost Pan |
|
- | |||||
| 12 | 5300164843 | Drain Tube |
|
- | |||||
| 13 | 5316190401 | Grille-kickplate |
|
- | |||||
| 14 | 5300154397 | Plug-grille |
|
- | |||||
| 15 | 5308000091 | Clip-grille |
|
$ 14.57 | |||||
| 16 | 5303208475 | Light Switch |
|
- | |||||
| 17 | 5303001271 | Hinge-bottom |
|
$ 102.38 | |||||
| 18 | 5303001272 | Shim-btm Hinge (3) |
|
- | |||||
| 19 | 5317000101 | Damper-meat Pan |
|
- | |||||
| 20 | G162881-10 | Knob-temp Control |
|
- | |||||
| 21 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 22 | 5303001179 | Light Bulb |
|
- | |||||
| 23 | 08008708 | Housing-cap Tube |
|
- | |||||
| 24 | 08008709 | Bracket-control Mtg |
|
- | |||||
| 25 | 5308008709 | Light Deflector |
|
- | |||||
| 26 | 5303007400 | Timer |
|
- | |||||
| 27 | 5308000068 | Control, Temperature |
|
$ 166.58 | |||||
| 28 | 5308008706 | Cover-mtg Bracket |
|
- | |||||
| 29 | 5316995001 | Knob-damper Control |
|
- | |||||
| 30 | G169949-09 | Light Shield |
|
- | |||||
| 31 | 08008718 | Air Duct |
|
- | |||||
| 32 | 3015056 | Insulation-duct Lower |
|
- | |||||
| 33 | 3015057 | Insulation-duct Upper |
|
- | |||||
| 34 | 08008721 | Damper-air Duct |
|
- | |||||
| 35 | 5308008711 | Fan Cover |
|
- | |||||
| 36 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 37 | 5303001226 | Bracket-front |
|
- | |||||
| 38 | 08008710 | Housing-fan Motor |
|
- | |||||
| 39 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 40 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 41 | 5303205119 | Bracket, Rear |
|
- | |||||
| 42 | 5308000107 | Connector Bracket |
|
$ 33.23 | |||||
| 43 | 5303001324 | Ice Cube Tray (2) |
|
- | |||||
| 44 | 5316391601 | Cover-lower Pan |
|
- | |||||
| 45 | G179708-06 | Storage Pan-lower |
|
- | |||||
| 46 | G177343-13 | Trim-lower Pan |
|
- | |||||
| 47 | G179707-06 | Storage Pan-upper |
|
- | |||||
| 48 | G177343-14 | Trim-upper Pan |
|
- | |||||
| 49 | 5308008727 | Cover-upper Pan |
|
- | |||||
| 50 | 5303210247 | Shelf (4) |
|
- | |||||
| 51 | 5303210246 | Trim-shelf (4) |
|
- | |||||
| 52 | 5308002744 | Channel-shelf Mtg (2) |
|
- | |||||
| *27232 | 5308010253 | Screw-chnnl Mtg (6) |
|
- | |||||
| *27232 | 5308016571 | Plug, Freezer Liner (3) |
|
$ 4.79 | |||||
| *27233 | 5308012296 | Tapping-plate (2) |
|
$ 47.44 | |||||
| *27233 | 08008729 | Wiring Harness-controls |
|
- | |||||
| *27233 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 10A | 5308017044 | Screw-roller Mtg (2) (non-illustrated) |
|
$ 6.34 | |||||
| 10B | 5308009568 | Screw-roller Adj (2) (non-illustrated) |
|
- | |||||
| 11A | 08000185 | Tape, Foam, Adhesive |
|
- | |||||
| 17A | 08002738 | Washer-hinge Pin (non-illustrated) |
|
- | |||||
| 17B | 5303001041 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 17C | 5303001273 | Twin Nut (4) (non-illustrated) |
|
- | |||||
| 17D | 5308000013 | Shoulder Pin (2) (non-illustrated) |
|
- | |||||
| 17E | 5300077210 | Speed Nut (2) (non-illustrated) |
|
- | |||||
| 19A | 5308010253 | Screw-damper Mtg (non-illustrated) |
|
- | |||||
| 1A | 5308000007 | Washer-hinge Pin (non-illustrated) |
|
- | |||||
| 1B | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 24A | 08009649 | Insulator-cont Box (non-illustrated) |
|
- | |||||
| 26A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 26B | 08003581 | Screw-ground (2) (non-illustrated) |
|
- | |||||
| 27A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 30A | G172635-04 | Label-freezer Control (non-illustrated) |
|
- | |||||
| 30B | G172637-04 | Label-refr Control (non-illustrated) |
|
- | |||||
| 34A | 5300171508 | Push Nut-damper Mounting (non-illustrated) |
|
- | |||||
| 35A | 5308010253 | Screw-cover Mtg (non-illustrated) |
|
- | |||||
| 41A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 49A | 3018752 | Gasket-pan Cover (non-illustrated) |
|
- | |||||
| 9A | 5303001028 | Push Nut-pin (2) (non-illustrated) |
|
- |
