02 - Door Parts

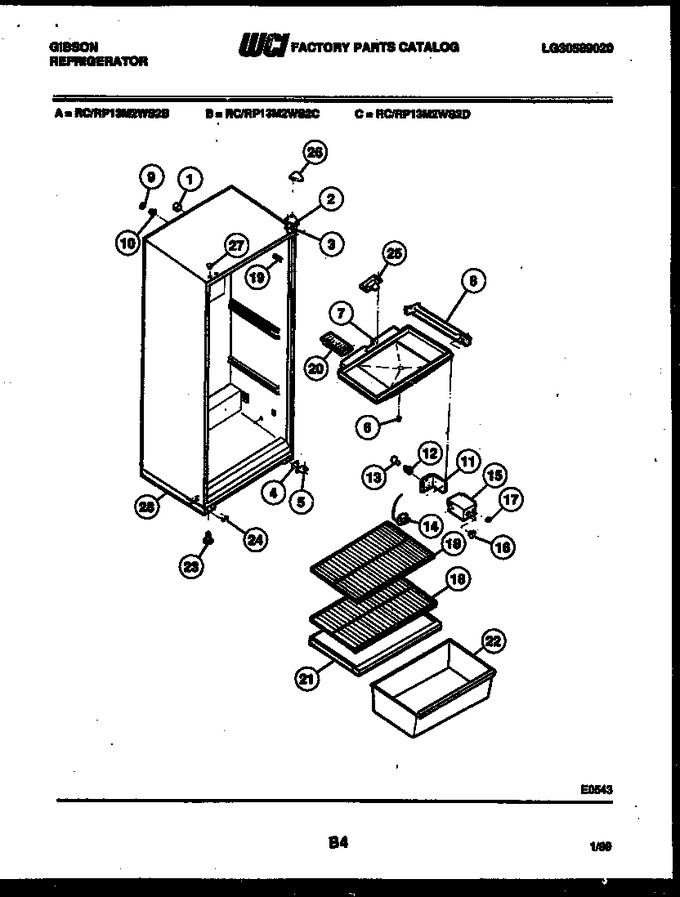

03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G85642 | Tube, Rubber |
|
- | |||||
| 2 | G183714 | Hinge-top |
|
- | |||||
| 3 | G183861 | Shim Top Hinge |
|
- | |||||
| 4 | G163203 | Shim-bottom Hinge |
|
- | |||||
| 5 | G181019 | Bracket-bottom Hng |
|
- | |||||
| 6 | G182295 | Stopper-rubber |
|
- | |||||
| 7 | G177668-01 | Drip Tray |
|
- | |||||
| 8 | G163217 | Support-tray Rh |
|
- | |||||
| 9 | G174734 | Ferrule Outer |
|
- | |||||
| 10 | G174733 | Ferrule, Inner |
|
- | |||||
| 11 | G163210 | Bracket-control |
|
- | |||||
| 12 | G168302 | Light Socket |
|
- | |||||
| 13 | G25806 | Light Bulb |
|
- | |||||
| 14 | G162205-08 | Control-temperature |
|
- | |||||
| 15 | G163211-31 | Control Box |
|
- | |||||
| 16 | G174781-03 | Knob-control |
|
- | |||||
| 17 | G162672 | Light Switch |
|
- | |||||
| 18 | G172174-02 | Shelf-full (2) |
|
- | |||||
| 19 | G162364-01 | Corner Trim-white |
|
- | |||||
| 19 | G162364-11 | Corner Trim-almond |
|
- | |||||
| 19 | G162364-10 | Corner Trim-coffee |
|
- | |||||
| 19 | G162364-09 | Corner Trim-wheat |
|
- | |||||
| 19 | G162364-08 | Corner Trim-avoc |
|
- | |||||
| 20 | G156376-13 | Tray, Ice (2) |
|
- | |||||
| 21 | G172455-01 | Cover-pan |
|
- | |||||
| 22 | G172437-01 | Pan, Storage |
|
- | |||||
| 23 | G185713 | Leveling Screw (2) |
|
- | |||||
| 24 | G166912 | Plug-hinge Hole |
|
- | |||||
| 25 | G179612 | Plate, Baffle |
|
- | |||||
| 26 | G183558-11 | Cover Hinge, Almond |
|
- | |||||
| 26 | G183558-01 | Cover Hinge, White |
|
- | |||||
| 26 | G183558-08 | Cover Hinge, Avoc. |
|
- | |||||
| 26 | G183558-09 | Cover Hinge, Wheat |
|
- | |||||
| 26 | G183558-10 | Cover Hinge, Coffee |
|
- | |||||
| 27 | G174747-08 | Button, Plug, Avocado |
|
- | |||||
| 27 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 27 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 27 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 27 | G174747-01 | Button-plug-white |
|
- | |||||
| 28 | G161998-01 | Base-cabinet |
|
- | |||||
| 11A | G141851 | Screw-bracket (non-illustrated) |
|
- | |||||
| 14A | G107080 | Screw |
|
- | |||||
| 15A | G141851 | Screw-mtg (2) (non-illustrated) |
|
- | |||||
| 22A | G186183 | Label-pan (non-illustrated) |
|
- | |||||
| 23A | G183073 | Anchor Nut (2) (non-illustrated) |
|
- | |||||
| 25A | G183114 | Clip-canoe (2) (non-illustrated) |
|
- | |||||
| 25B | G179540 | Label-baffle (non-illustrated) |
|
- | |||||
| 2A | G167103 | Screw, Hinge (2) (non-illustrated) |
|
- | |||||
| 2B | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 4A | G179797 | Plate Tapping (non-illustrated) |
|
- | |||||
| 5A | G166505 | Pin-bottom Hinge (non-illustrated) |
|
- | |||||
| 5B | G164355 | Washer-bottom Hng (non-illustrated) |
|
- | |||||
| 5C | G181020 | Screw-hinge (2) (non-illustrated) |
|
- | |||||
| 7A | G179982 | Gasket-tray (non-illustrated) |
|
- |
