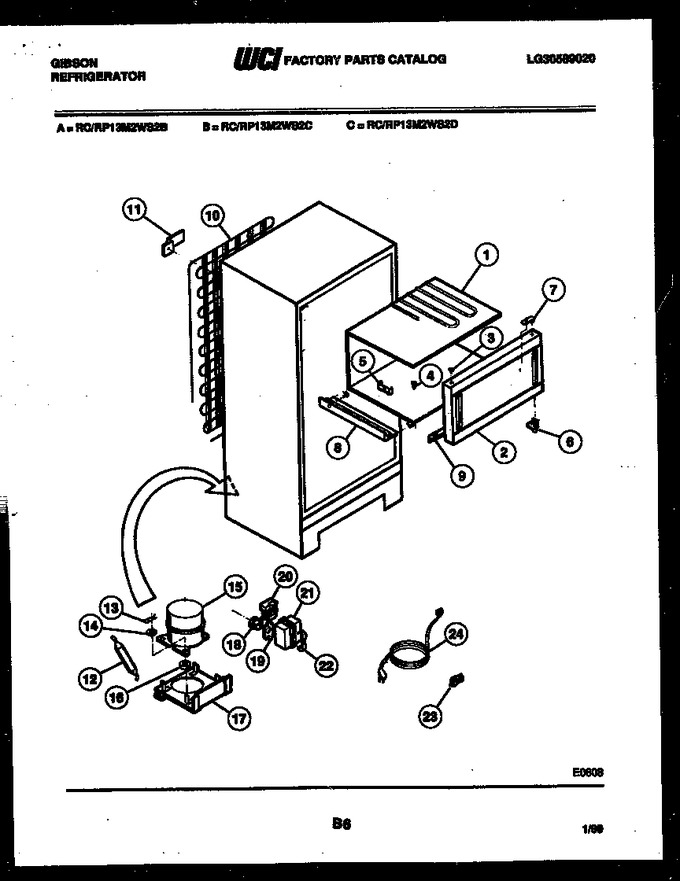

04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G187582		Evaporator		Appelez-nous	-
2	G186193		Door-freezer/evap		Appelez-nous	-
3	G173776		Plug-hinge Hole		Appelez-nous	-
4	G162892-01		Plug-liner Hole		Appelez-nous	-
5	G185059		Door Catch-freezer		Appelez-nous	-
6	G185297		Hinge-bottom		Appelez-nous	-
7	G176746		Hinge-top		Appelez-nous	-
8	G176753		Bracket-evap Mtg (2)		Appelez-nous	-
9	G181105		Channel, Evaporator		Appelez-nous	-
10	G169094		Condenser		Appelez-nous	-
11	G164637		Bracket, Cond. Mtg. (4)		Appelez-nous	-
12	G186717		Filter Drier		Appelez-nous	-
13	G163204		Clip (3)		Appelez-nous	-
14	G164634		Washer (3)		Appelez-nous	-
15	G182145		Compressor W/elec		Appelez-nous	-
16	G177617		Grommet (4)		Appelez-nous	-
17	G162822		Plate, Compr., Mtg		Appelez-nous	-
18	G182144		Overload		Appelez-nous	-
19	G177437		Clip, Overload		Appelez-nous	-
20	G182143		Relay		Appelez-nous	-
21	G177438		Cover - Terminal		Appelez-nous	-
22	G177436		Strap-cover Mtg		Appelez-nous	-
23	G27669		Clamp-cable/cord (5)		Appelez-nous	-
24	G162549-01		Service Cord		Appelez-nous	-
*16462	G177673		Wiring Harness (non-illustrated)		Appelez-nous	-
11A	G160578		Screw		Appelez-nous	-
11B	G164280		Washer-no. 10 Ext Tooth (non-illustrated)		Appelez-nous	-
1A	G181104		Screw-evap Mtg (non-illustrated)		Appelez-nous	-
2A	G185054		Door Stop-freezer (non-illustrated)		Appelez-nous	-
2B	G187363		Screw		Appelez-nous	-
5A	G181104		Screw-catch Mtg (non-illustrated)		Appelez-nous	-
5B	G166847		Washer-no. 10 Steel (non-illustrated)		Appelez-nous	-
6A	G181104		Screw-hinge Mtg (non-illustrated)		Appelez-nous	-
6B	G166847		Washer-no. 10 Steel (non-illustrated)		Appelez-nous	-
7A	G187363		Screw		Appelez-nous	-
8A	G181104		Screw-bracket Mtg (4) (non-illustrated)		Appelez-nous	-
