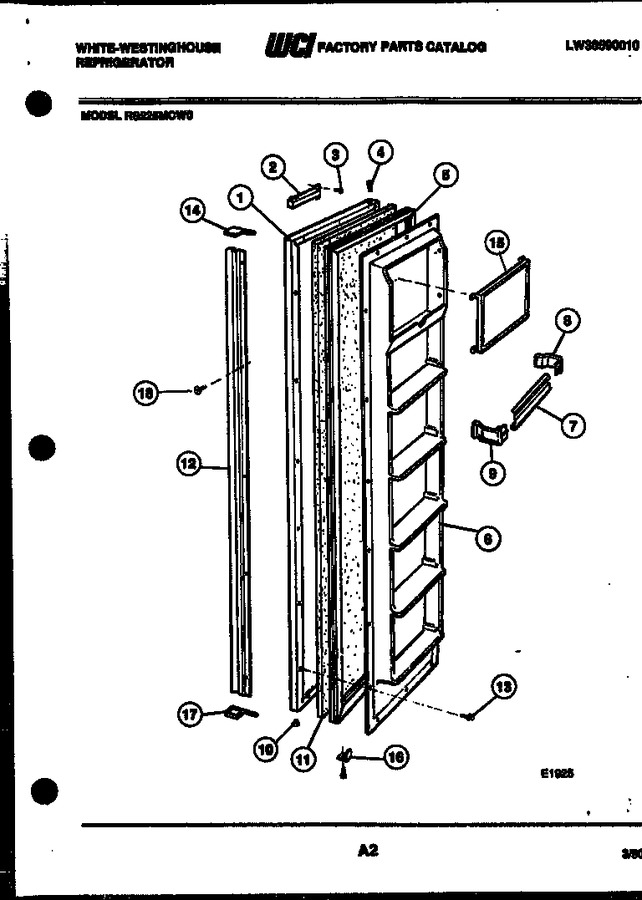

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - Ice Maker Parts


09 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R000900888		Freezer Door-avoc		Appelez-nous	-
2	5303200272		Door Closer		Appelez-nous	-
3	5306588927		Screw-closer Mtg		Appelez-nous	-
4	5303001022		Hinge Bearing, Upper		Appelez-nous	-
5	5303200832		Gasket-freezer		Appelez-nous	-
6	G180119-01		Door Panel-inner		Appelez-nous	-
7	5303207071		Door Rack (5)		Appelez-nous	-
8	5303204848		Support-rh (5)				$ 35.86
9	5303204849		Support-lh (5)				$ 21.11
10	5315230801		Plug-door Bottom		Appelez-nous	-
11	5303007739		Insulation, Bulk		Appelez-nous	-
12	5303207069		Handle-freezer Door		Appelez-nous	-
13	218843801		Screw   (Replaces: 5303001001)				$ 14.41
14	5300177142		Handle End-top		Appelez-nous	-
15	5303207070		Rack-juice Can		Appelez-nous	-
16	5308000790		Bumper, Light Switch				$ 3.86
17	5300177143		Handle End-bottom		Appelez-nous	-
18	5308011745		Screw				$ 10.38
14A	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
14B	5300179270		Trim-handle End-top (non-illustrated)		Appelez-nous	-
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
17A	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
17B	5300179271		Trim-handle End-bottom (non-illustrated)		Appelez-nous	-
4A	5308012007		Hinge Bearing - Lower (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
