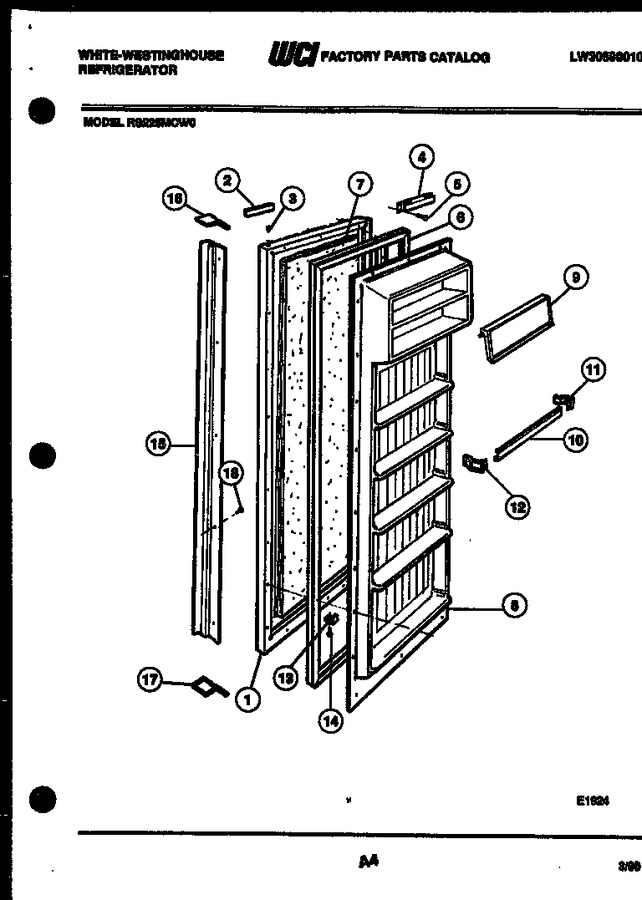

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916537		Refr Door-avocado		Appelez-nous	-
2	3206159		Nameplate Assy		Appelez-nous	-
3	5303001022		Hinge Bearing, Upper		Appelez-nous	-
4	5303200272		Door Closer		Appelez-nous	-
5	5306588927		Screw-closer Mtg		Appelez-nous	-
6	5303205400		Gasket-refrigerator				$ 200.13
7	5303007739		Insulation, Bulk		Appelez-nous	-
8	G179991-01		Door Panel-inner		Appelez-nous	-
9	5303207066		Dairy Door (2)		Appelez-nous	-
10	5303207068		Door Rack (5)				$ 16.96
11	5303204848		Support Rs (5)				$ 35.86
12	5303204849		Support Ls (5)				$ 21.11
13	530800790		Bumper-light Switch		Appelez-nous	-
14	218843801		Screw   (Replaces: 5303001001)				$ 14.41
15	5303207069		Handle-refr Door		Appelez-nous	-
16	5300177142		Handle End-top		Appelez-nous	-
17	5300177143		Handle End-bottom		Appelez-nous	-
18	5308011745		Screw				$ 10.38
*26512	5303207067		Snugger-door Rack (2)		Appelez-nous	-
16A	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
16B	5300179270		Trim-handle End-top (non-illustrated)		Appelez-nous	-
17A	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
17B	5300179271		Trim-handle End-bottom (non-illustrated)		Appelez-nous	-
1A	5315230801		Plug - Door Bottom (non-illustrated)		Appelez-nous	-
3A	5308012007		Hinge Bearing - Lower (non-illustrated)		Appelez-nous	-
8A	218843801		Screw   (Replaces: 5303001001)				$ 14.41

    View Diagram in Separate Window       Print Part List
