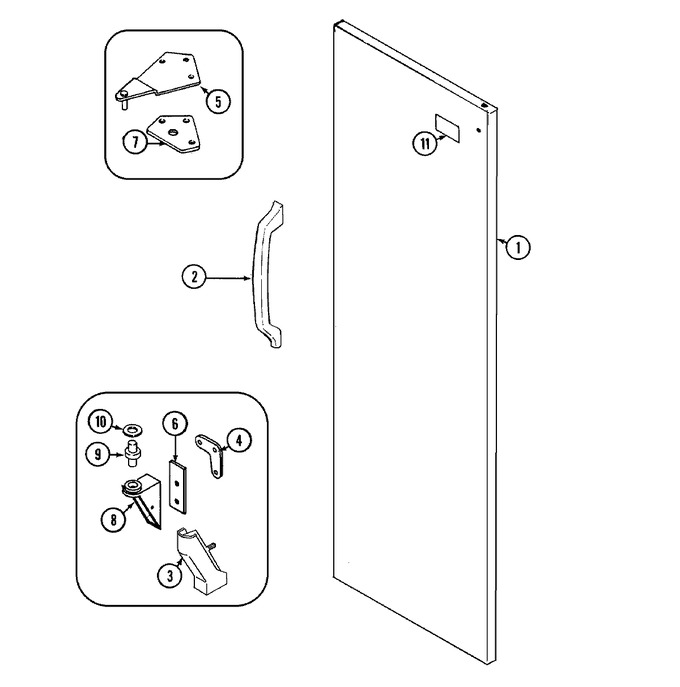

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72347-2-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
1	495034-900		Plug Button, Door	10	Appelez-nous	-
2	12000051		Kit, Handle Assy. (wht)	10	Appelez-nous	-
2	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
3	61001611		Cover, Lower Hinge (wht)	10	Appelez-nous	-
4	65275-59		Screw	10	Appelez-nous	-
4	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
5	53709-28		Hinge, Upper	10	Appelez-nous	-
5	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
6	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
7	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
8	61001587		Hinge, Lower	10	Appelez-nous	-
8	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
9	69845-1		Pin, Lower Hinge	10			$ 44.55
10	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
11	66982-31		Nameplate (wht)	10	Appelez-nous	-
