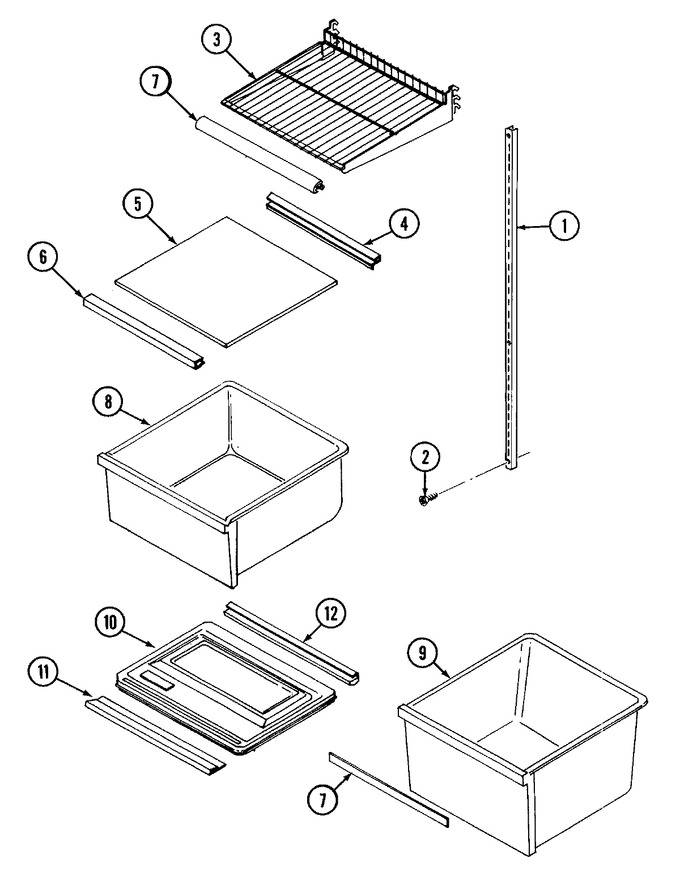

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	70105-8		Shelf, Wire	10	Appelez-nous	-
4	68157-1		Seal, Crisper Pan (rear)	10	Appelez-nous	-
5	65687-5		Shelf, Crisper	10	Appelez-nous	-
6	66650-1		Trim	10	Appelez-nous	-
7	61001569		Trim, Shelf	10	Appelez-nous	-
8	66509-25		Pan, Crisper Lower	10	Appelez-nous	-
8	68124-103		Insert, Crisper Pan Handle	10	Appelez-nous	-
9	68124-102		Insert, Meat Front Handle	10	Appelez-nous	-
9	66510-25		Pan, Meat	10	Appelez-nous	-
10	65608-5		Cover, Meat Pan	10	Appelez-nous	-
11	65648-1		Seal, Meat Pan (front)	10	Appelez-nous	-
12	65649-1		Seal, Meat Pan (rear)	10	Appelez-nous	-
