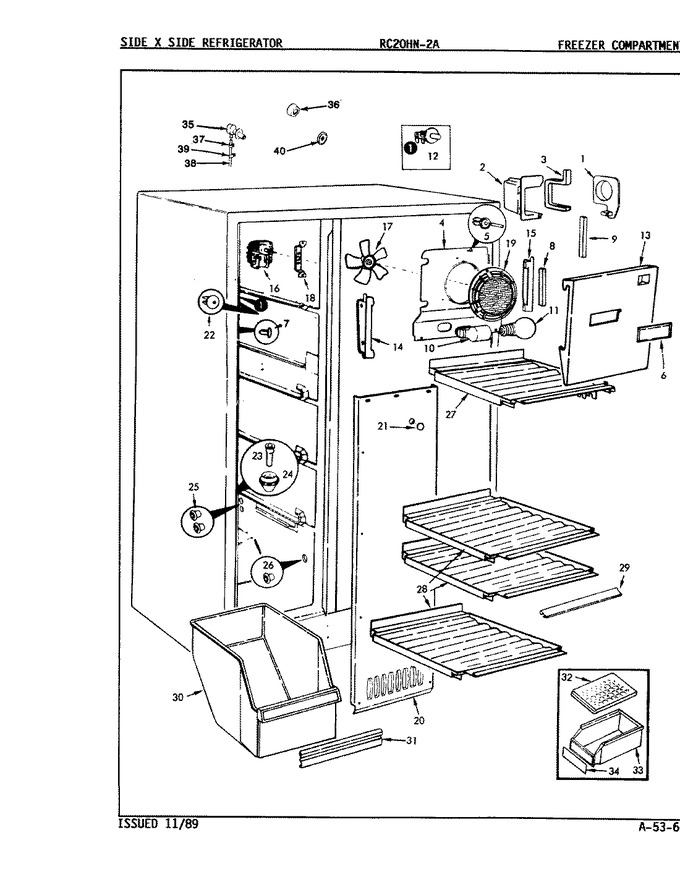

01 - Freezer Compartment


02 - Freezer Doors


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54423-1		Orifice		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
2	53837-1		Shield		Appelez-nous	-
3	52077-10		Seal		Appelez-nous	-
4	68247-2		Cover		Appelez-nous	-
5	59920-1		Stud, Mounting Coil Cover		Appelez-nous	-
6	68325-1		Insert----na		Appelez-nous	-
7	67557-1		Plug Button		Appelez-nous	-
8	52824-6		Coil Seal		Appelez-nous	-
9	52077-19		Seal,upper Coil Cover To Liner		Appelez-nous	-
10	29814-2		Receptacle, Light		Appelez-nous	-
11	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
12	56432-2		Switch		Appelez-nous	-
13	68246-1		Shield, Light		Appelez-nous	-
14	53687-2		Support		Appelez-nous	-
15	54424-2		Support		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
16	56488-4		Motor		Appelez-nous	-
17	52120-1		Blade, Fan Frzr.		Appelez-nous	-
18	64856-2		Bracket, Fan Motor		Appelez-nous	-
18	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
19	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
19	68253-1		Grid, Fan		Appelez-nous	-
20	65224-3		Cover, Coil		Appelez-nous	-
20	400015-12		Screw		Appelez-nous	-
21	495015-900		Plug Button		Appelez-nous	-
22	53821-1		Nut		Appelez-nous	-
23	26527-9		Drain Tube		Appelez-nous	-
24	52526-1		Grommet		Appelez-nous	-
25	53727-1		Retainer, Air Tunnel		Appelez-nous	-
26	53727-1		Retainer, Air Tunnel		Appelez-nous	-
27	65651-9		Shelf, Frz. No.1		Appelez-nous	-
28	65651-1		Shelf, Frz. No.2,3,4		Appelez-nous	-
29	66316-1		Trim		Appelez-nous	-
30	66512-7		Drawer, Frz.		Appelez-nous	-
31	68124-7		Insert		Appelez-nous	-
32	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
33	66592-1		Pan		Appelez-nous	-
34	68134-3		Insert		Appelez-nous	-
35	68396-1		Grommet		Appelez-nous	-
36	67637-1		Cap Water Line		Appelez-nous	-
37	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
38	67637-1		Cap Water Line		Appelez-nous	-
38	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-6)				$ 11.19
39	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
39	WP488366		Clamp, Feeder Tube   (Replaces: 23197-8)				$ 10.06
40	68187-1		Cap, Connector		Appelez-nous	-
