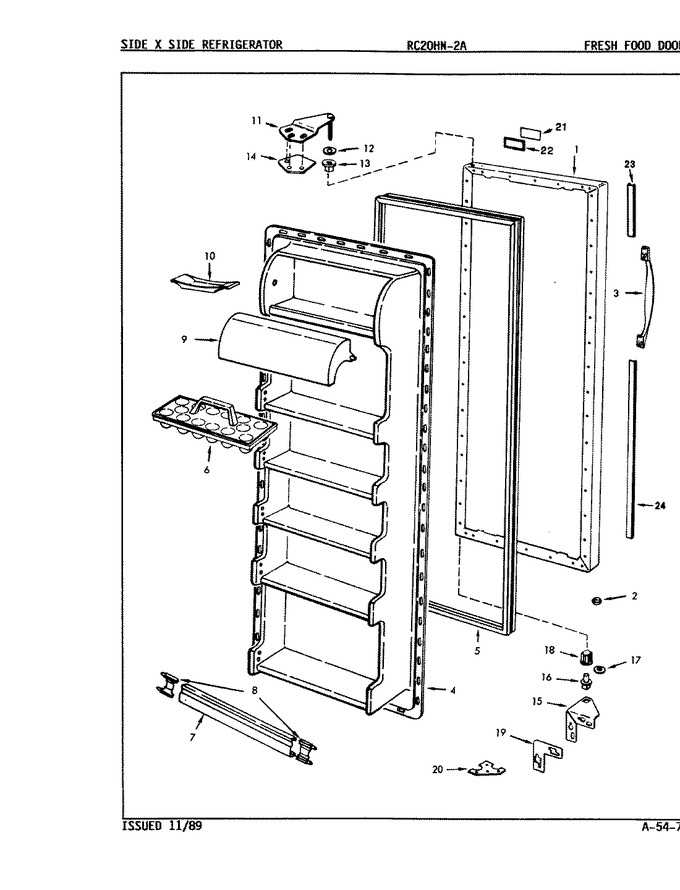

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95060-1 | Insulation Kit |
|
- | |||||
| 1 | 62391-10-WW | Panel, Outer Door |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 434003-506 | Fastener |
|
- | |||||
| 3 | 63686-3 | Handle |
|
- | |||||
| 4 | 65944-9 | Liner, Door |
|
- | |||||
| 4 | 65275-5 | Screw |
|
- | |||||
| 5 | 66929-7 | Gasket |
|
- | |||||
| 6 | 60066-1 | Tray, Egg |
|
- | |||||
| 7 | WP61003045 | Trim, Door Shelf (Replaces: 65151-211) |
|
$ 129.55 | |||||
| 8 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 9 | 66184-327 | Door, Dairy |
|
- | |||||
| 10 | 29936-2 | Tray, Butter |
|
- | |||||
| 11 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 11 | 53709-18 | Door Hinge, Upper |
|
- | |||||
| 11 | 65003-6 | Cover, Upper Hinge (wht) |
|
- | |||||
| 12 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 13 | 66036-1 | Bushing,top/center Hinge |
|
- | |||||
| 14 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 15 | 403062-5 | Screw |
|
- | |||||
| 15 | 60630-12 | Hinge, Lower |
|
- | |||||
| 16 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 17 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 18 | 66034-1 | Bushing, Lower Hinge |
|
$ 19.76 | |||||
| 19 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 20 | 65964-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 21 | 66982-2 | Insert |
|
- | |||||
| 22 | 66981-1 | Bezel |
|
- | |||||
| 23 | 65774-5 | Handle Ext |
|
- | |||||
| 24 | 65774-6 | Handle Ext |
|
- |
