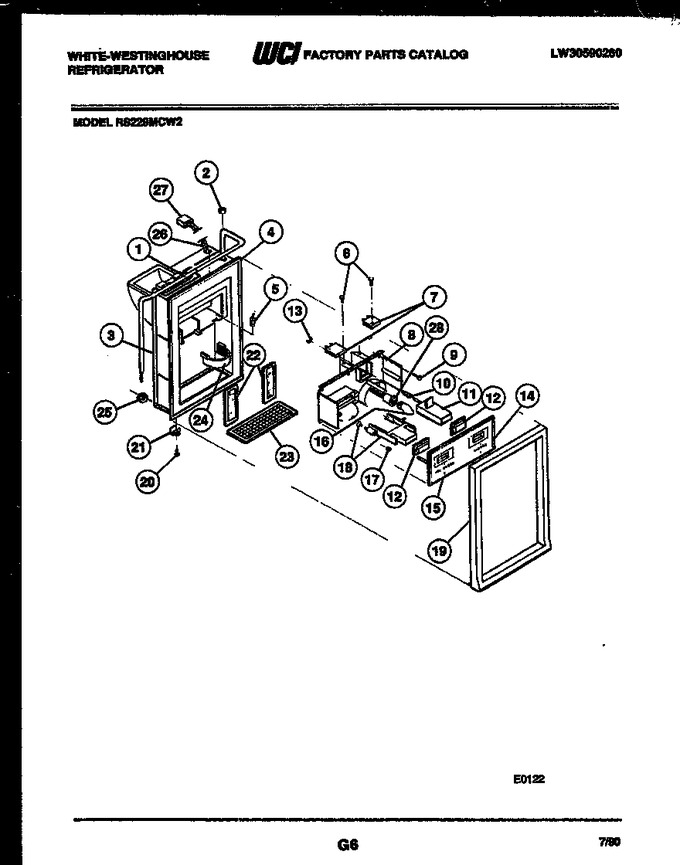

| 1 | 5308017048 | Tube-water Inlet & Pilot Assy |
|
- | |||||
| 2 | 5303001066 | Grommet-water Tube |
|
- | |||||
| 3 | 5308015588 | Heater-door Hsg |
|
- | |||||
| 4 | 5303211294 | Housing-i/w Door |
|
- | |||||
| 5 | 5308010326 | Clamp-water Tube |
|
- | |||||
| 6 | 5303001073 | Screw (4) |
|
- | |||||
| 7 | 5303001078 | Switch-solenoid (2) |
|
- | |||||
| 8 | 5303204878 | Plate-switch Mtg |
|
- | |||||
| 9 | 5303001083 | Screw (4) |
|
- | |||||
| 10 | 5303001072 | Spring-water Actuator |
|
- | |||||
| 11 | 5303001077 | Actuator-water |
|
- | |||||
| 12 | 5303205889 | Buttons-water & Ice (2) |
|
- | |||||
| 13 | 5302832214 | Clip - Water Actuator |
|
- | |||||
| 14 | 5303208251 | Label-front Panel |
|
- | |||||
| 15 | 5318264301 | Front Panel |
|
- | |||||
| 16 | 5300187180 | Bulb-light |
|
- | |||||
| 17 | 5303001081 | Screw-adjusting |
|
- | |||||
| 18 | 5300190359 | Actuator And Suct Cup |
|
- | |||||
| 19 | 5303205853 | Frame-frzr Door Hsg |
|
- | |||||
| 20 | 5308010330 | Screw-clip Mtg (2) |
|
- | |||||
| 21 | 5300179966 | Clip-trim Mtg (2) |
|
- | |||||
| 22 | 5308015598 | Label-fill Pads, (2) |
|
- | |||||
| 23 | 5303208845 | Grid-water Spill |
|
- | |||||
| 24 | 5318000402 | Skirt-ice Deflector |
|
- | |||||
| 25 | 5308017047 | Nut-self Thread (12) |
|
- | |||||
| 26 | 5303001082 | Wiring Harness Frzr Door |
|
- | |||||
| 27 | 5303001047 | Plug-harness Bottom |
|
- | |||||
| 28 | 5303001076 | Lampholder |
|
- | |||||
| *21956 | 5318653301 | Diode Kit |
|
- | |||||
| *21956 | 5303001074 | Anchor-stud (2) |
|
- | |||||
| 12A | 3001155 | Label-buttons (2) (non-illustrated) |
|
- | |||||
| 19A | 5303211296 | Label-frzr Dr Hsg Frame-avoc (non-illustrated) |
|
- |
