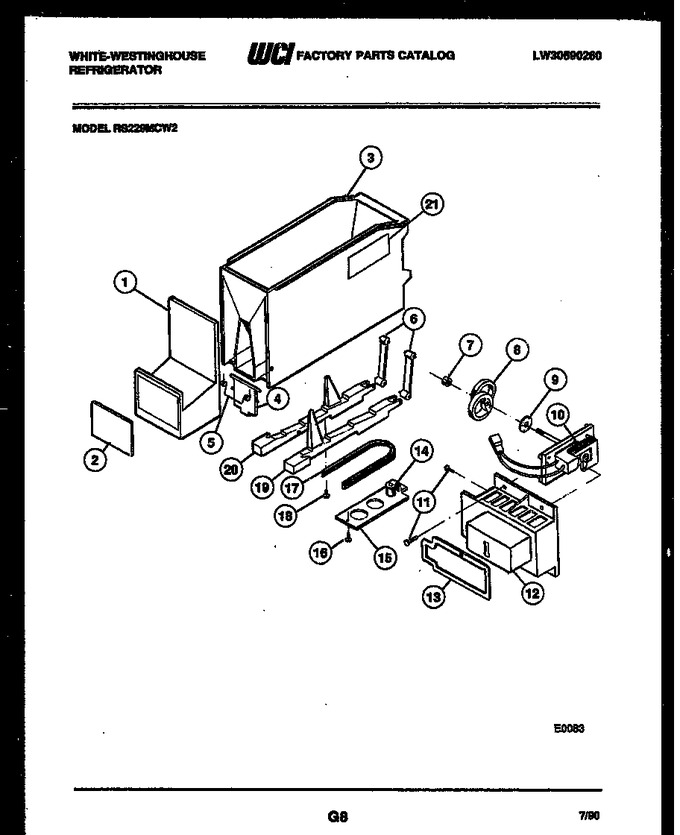

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015126 | Front-ice Container |
|
- | |||||
| 2 | 5303208862 | Label-ice Container |
|
- | |||||
| 3 | G182151-01 | Ice Container |
|
- | |||||
| 4 | 5318252401 | Door - Ice Container |
|
- | |||||
| 5 | 5308015583 | Spring-cntnr Door |
|
- | |||||
| 6 | 5308015594 | Spring & Pin Assy (2) |
|
$ 47.08 | |||||
| 7 | 08017101 | Lock Nut 1/4-28 |
|
- | |||||
| 8 | 5308015558 | Cam - Drive Link |
|
- | |||||
| 9 | 5308015584 | Seal - Motor Shaft |
|
- | |||||
| 10 | 5308015596 | Motor - Ice Dispenser |
|
- | |||||
| 11 | 08017100 | Screw - Housing (3) |
|
- | |||||
| 12 | 5308015580 | Housing-disp Motor |
|
- | |||||
| 13 | 5308015605 | Gasket - Housing |
|
- | |||||
| 14 | 5308015559 | Spool - Ice Ram |
|
- | |||||
| 15 | 5300181950 | Support - Spool |
|
- | |||||
| 16 | G000182868 | Screw - Support Mounting |
|
- | |||||
| 17 | 5308015593 | Belt - Ram Return |
|
- | |||||
| 18 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 19 | 5303208984 | Ram-ice Rh |
|
- | |||||
| 20 | 5303208982 | Ram-ice Lh |
|
- | |||||
| 21 | 5303016895 | Label-ice Dispenser |
|
- | |||||
| *21958 | 5303017391 | Screw-ice Container To Liner (2) |
|
- | |||||
| *21958 | G000187125 | Insulator-motor Box |
|
- |
