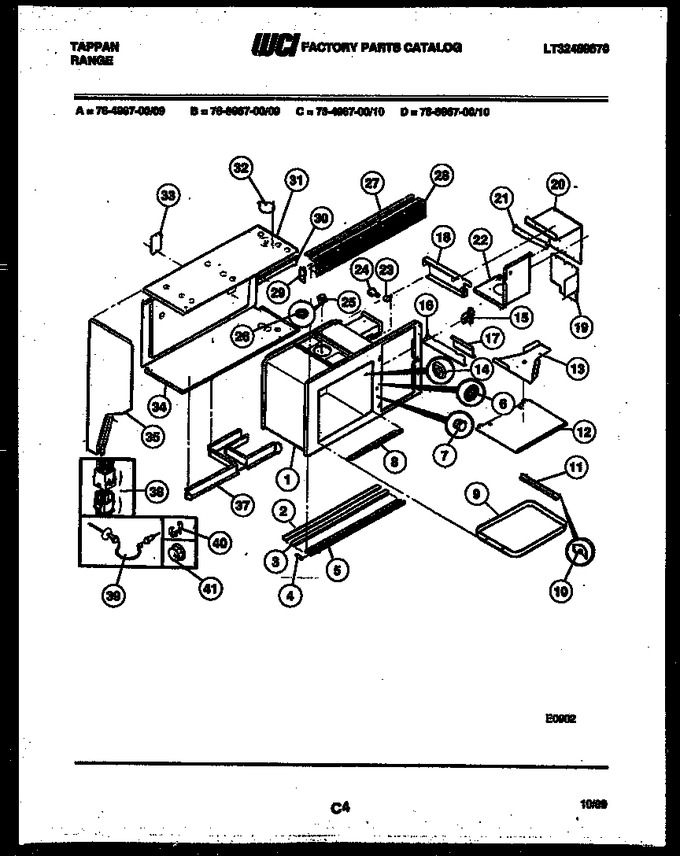

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	643T013P03		Seal		Appelez-nous	-
3	3200597		Cover - Seal		Appelez-nous	-
4	123T082P01		Cap End		Appelez-nous	-
5	740T408P03		Trim - Bottom		Appelez-nous	-
6	445T004P01		Medallion Dr Strike		Appelez-nous	-
7	287T003P08		Grommet Door		Appelez-nous	-
8	3200630		Trim, Front		Appelez-nous	-
9	736T005P01		Tray Glass		Appelez-nous	-
10	241T017P219		Clip Tray (4)		Appelez-nous	-
11	3200607		Glide Tray (2)		Appelez-nous	-
12	3200598		Cover, Stirrer		Appelez-nous	-
13	239T043S02		Fan Stirrer		Appelez-nous	-
14	479T084P01		Nut		Appelez-nous	-
15	597T035P01		Receptacle		Appelez-nous	-
16	008T480P01		Angle, Air Baffle		Appelez-nous	-
17	008T378F11		Angle, Air Baffle		Appelez-nous	-
18	136T321F02-18		Channel Air		Appelez-nous	-
19	174T267P01		Cover Duct Ext.		Appelez-nous	-
20	174T253S02		Cover Duct		Appelez-nous	-
21	072T731F01		Bracket		Appelez-nous	-
22	211T044F04		Duct, Bottom		Appelez-nous	-
23	3091197		Socket		Appelez-nous	-
24	374T024P01		Bulb		Appelez-nous	-
25	115T463P01		Motor, Stirrer		Appelez-nous	-
26	789T061P01		Washer		Appelez-nous	-
27	3091366		Retainer Trim		Appelez-nous	-
28	740T454P02		Trim Vent		Appelez-nous	-
29	123T081P05		Cap End Lh		Appelez-nous	-
30	3091344		Shield Vent Rh		Appelez-nous	-
31	3091373		Panel Top		Appelez-nous	-
32	174T204F01		Cover Outlet		Appelez-nous	-
33	3091338		Cover Light		Appelez-nous	-
34	3091346		Wrapper		Appelez-nous	-
35	3131908		Panel Rh (black)		Appelez-nous	-
35	3051264		Panel Rh Almd		Appelez-nous	-
35	3051261		Panel Lh Almd		Appelez-nous	-
35	3131907		Panel Lh (black)		Appelez-nous	-
37	3131584		Duct Air		Appelez-nous	-
38	355T442S02		Plug Kit		Appelez-nous	-
39	115T563P03		Probe		Appelez-nous	-
40	241T01P153		Fastener		Appelez-nous	-
41	102T028P01		Busing		Appelez-nous	-
29A	123T081P06		Cap End Rh		Appelez-nous	-
30A	3091212		Shield Vent Lh		Appelez-nous	-
35A	154T021P01		Collar Stirrer (non-illustrated)		Appelez-nous	-
41B	560T786P01		Label Cooking Guide (non-illustrated)		Appelez-nous	-
