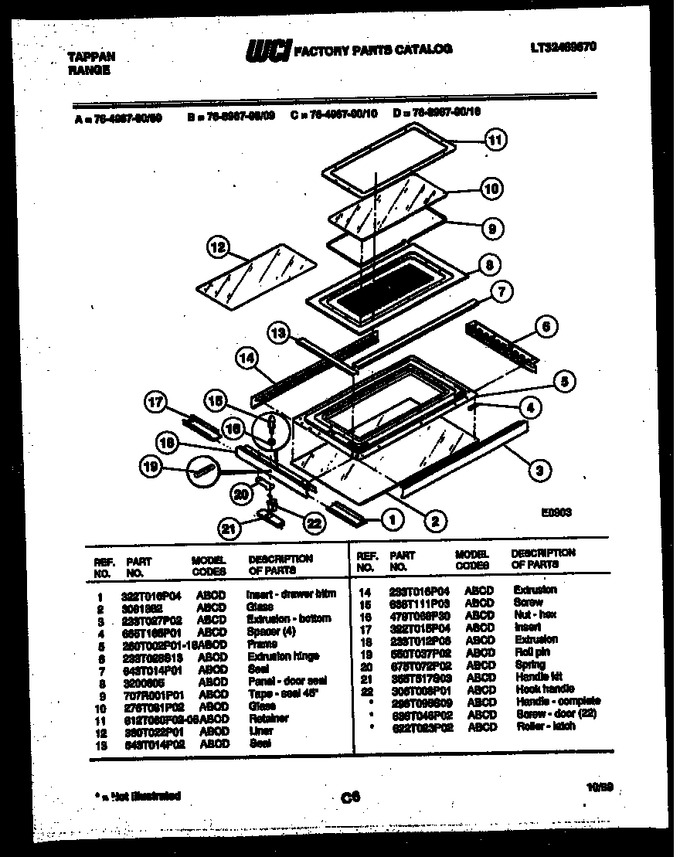

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	322T016P04		Insert - Drawer Bttm		Appelez-nous	-
2	3091382		Glass		Appelez-nous	-
3	233T027P02		Extrusion, Bottom		Appelez-nous	-
4	665T165P01		Spacer (4)		Appelez-nous	-
5	260T002P01-18		Frame		Appelez-nous	-
6	233T026S13		Extrusion Hinge		Appelez-nous	-
7	643T014P01		Seal		Appelez-nous	-
8	3200605		Panel - Door Seal		Appelez-nous	-
9	707R001P01		Tape Seal 45		Appelez-nous	-
10	276T081P02		Glass		Appelez-nous	-
11	612T080F02-08		Retainer		Appelez-nous	-
12	380T022P01		Liner		Appelez-nous	-
13	643T014P02		Seal		Appelez-nous	-
14	233T016P04		Extrusion		Appelez-nous	-
15	636T111P03		Screw		Appelez-nous	-
16	479T069P30		Nut Hex		Appelez-nous	-
17	322T015P04		Insert		Appelez-nous	-
18	233T012P06		Extrusion		Appelez-nous	-
19	550T037P02		Roll Pin		Appelez-nous	-
20	675T072P02		Spring		Appelez-nous	-
21	355T517S03		Handle Kit		Appelez-nous	-
22	306T008P01		Hook Handle		Appelez-nous	-
*34115	636T046P02		Screw Door (22)		Appelez-nous	-
*34115	296T095S09		Handle - Complete		Appelez-nous	-
*34115	622T023P02		Roller Latch		Appelez-nous	-
