SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Air Handling Parts


07 - System And Automatic Defrost


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G177745-10		Refrigerator Door - Coffee		Appelez-nous	-
2	5303001022		Hinge Bearing, Upper		Appelez-nous	-
3	5303007739		Insulation, Bulk		Appelez-nous	-
4	5303200272		Door Closer		Appelez-nous	-
5	5303200473		Gasket, Refrigerator Door		Appelez-nous	-
6	3015088		Door Panel, Inner		Appelez-nous	-
7	3015087		Dairy Door (2)		Appelez-nous	-
8	G490079-33		Door Rack (5)		Appelez-nous	-
9	3204850		Support, Rh (5)		Appelez-nous	-
10	3204694		Support, Lh (5)		Appelez-nous	-
11	5308000790		Bumper, Light Switch				$ 3.86
12	5317511702		Nameplate - Frame		Appelez-nous	-
13	5316355201		Door Handle		Appelez-nous	-
11A	5308002748		Screw		Appelez-nous	-
12A	5315340760		Tape, Mounting (not Illustrated)		Appelez-nous	-
12B	G188378-06		Label, Upper (not Illustrated)		Appelez-nous	-
12C	3019041		Label, Lower (not Illustrated)		Appelez-nous	-
13A	G185565		Screw, Mounting (2) (not Illustrated)		Appelez-nous	-
13B	G176752		Shim, Handle (2) (not Illustrated)		Appelez-nous	-
13C	G161863		Anchor Nut (2) (not Illustrated)		Appelez-nous	-
1A	5315230801		Door Plug Button (not Illustrated)		Appelez-nous	-
2A	5308012007		Hinge Bearing, Lower (not Illustrated)		Appelez-nous	-
4A	5303001020		Screw, Mounting (not Illustrated)		Appelez-nous	-
6A	5308002748		Screw		Appelez-nous	-

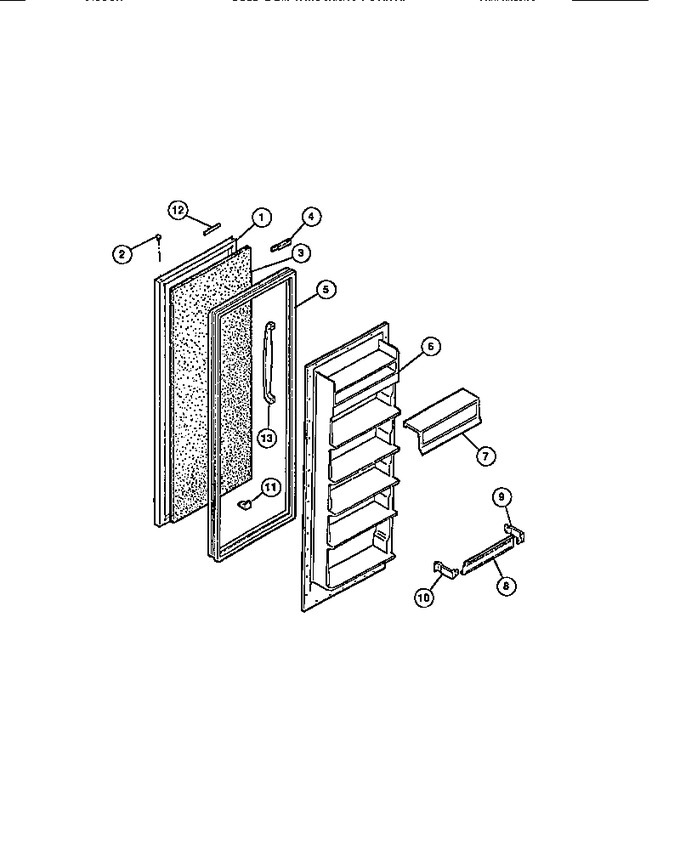

    View Diagram in Separate Window       Print Part List
