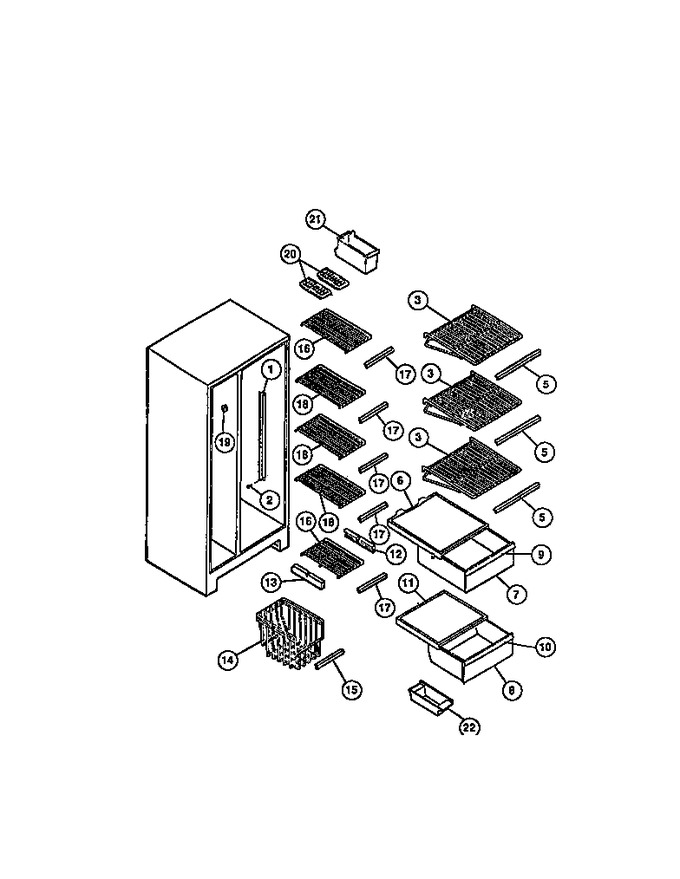

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308002744		Channel, Rh And Lh		Appelez-nous	-
2	5308010253		Screw, Mounting (8)		Appelez-nous	-
3	3015097		Shelf, Refrigerator (4)		Appelez-nous	-
5	5317241002		Trim, Snap-on (4)		Appelez-nous	-
6	5316971102		Cover, Pan Upper		Appelez-nous	-
7	G179709-03		Storage Pan, Upper		Appelez-nous	-
8	G179710-02		Storage Pan, Lower		Appelez-nous	-
9	G177343-12		Trim, Upper Pan		Appelez-nous	-
10	G177343-11		Trim, Lower Pan		Appelez-nous	-
11	5316972401		Cover, Lower Pan		Appelez-nous	-
12	5303001098		Hanger, Basket, Rh		Appelez-nous	-
13	5303001099		Hanger, Basket, Lh		Appelez-nous	-
14	3015096		Basket, Freezer		Appelez-nous	-
15	3015108		Trim, Basket		Appelez-nous	-
16	5316965802		Shelf, Freezer (2)		Appelez-nous	-
17	3016382		Trim, Snap On (5)		Appelez-nous	-
18	5303271646		Shelf, Freezer (3)		Appelez-nous	-
19	5304509705		Grommet, Shelf (10)   (Replaces: 5303001609)				$ 10.01
20	5303001324		Ice Tray (2)		Appelez-nous	-
21	G163022-03		Ice Container		Appelez-nous	-
22	5317394819		Egg Container		Appelez-nous	-
6A	5303205880		Gasket, Upper Pan (2) (not Illustrated)		Appelez-nous	-
