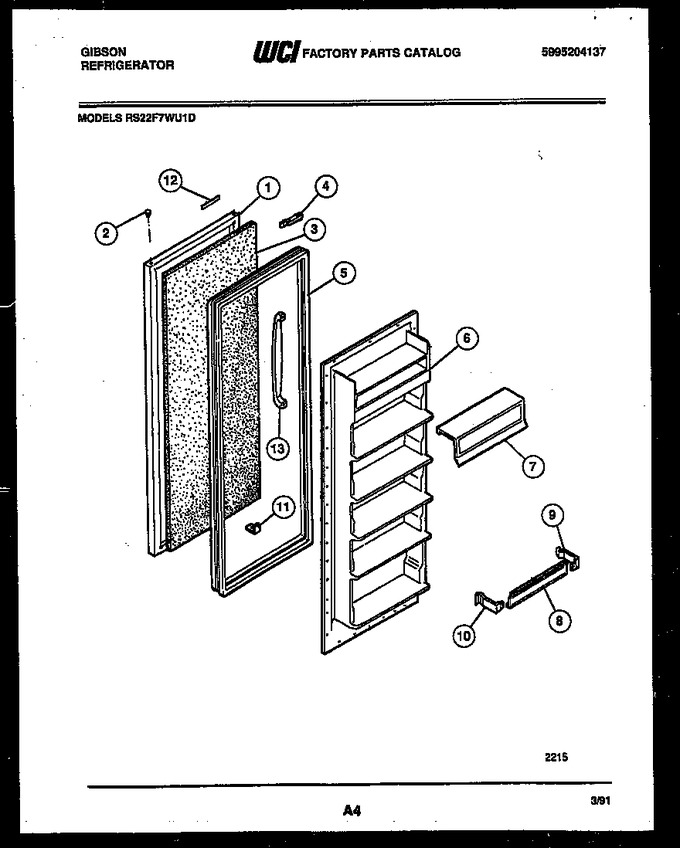

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300177745		Refrigerator Door-white		Appelez-nous	-
1	G177745-09		Refrigerator Door-wheat		Appelez-nous	-
1	G177745-10		Refrigerator Door - Coffee		Appelez-nous	-
1	G177745-11		Refrigerator Door, Almond		Appelez-nous	-
1	G177745-08		Refrigerator Door-avoc		Appelez-nous	-
2	5303001022		Hinge Bearing, Upper		Appelez-nous	-
3	5303007739		Insulation, Bulk		Appelez-nous	-
4	5303200272		Door Closer		Appelez-nous	-
5	5303200473		Gasket-refrig Door		Appelez-nous	-
6	3015088		Door Panel, Inner		Appelez-nous	-
7	3015087		Dairy Door (2)		Appelez-nous	-
8	G490079-33		Door Rack (5)		Appelez-nous	-
9	3204850		Support, Rh (5)		Appelez-nous	-
10	3204694		Support, Lh (5)		Appelez-nous	-
11	5308000790		Bumper, Light Switch				$ 3.86
12	5317511702		Nameplate - Frame		Appelez-nous	-
13	5316355201		Door Handle		Appelez-nous	-
*40840	G176752		Shim-handle (2)		Appelez-nous	-
*40840	G185565		Screw-mtg (2)		Appelez-nous	-
*40840	G161863		Anchor Nut (2)		Appelez-nous	-
11A	5308002748		Screw		Appelez-nous	-
12A	5315340760		Tape-mtg (non-illustrated)		Appelez-nous	-
12B	G188378-06		Label-upper (non-illustrated)		Appelez-nous	-
12C	3019041		Label-lower (non-illustrated)		Appelez-nous	-
1A	5315230801		Door Plug Button (non-illustrated)		Appelez-nous	-
2A	5308012007		Hinge Bearing - Lower (non-illustrated)		Appelez-nous	-
4A	5303001020		Screw Mtg (non-illustrated)		Appelez-nous	-
6A	5308002748		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
