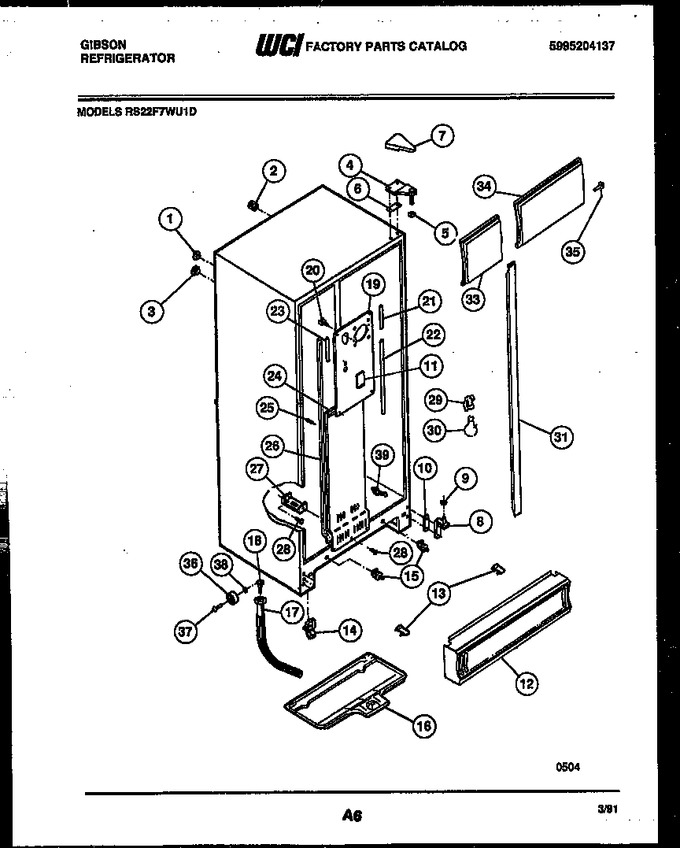

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001287		Ferrule-outer		Appelez-nous	-
2	5303001198		Tube-rubber		Appelez-nous	-
3	5303001286		Ferrule-inner		Appelez-nous	-
4	5308012934		Hinge Top, Rh		Appelez-nous	-
5	5308000186		Washer, Hinge Pin (2)			Immediately	$ 6.02
6	5303001037		Shim, Hinge (2)				$ 12.39
7	5303001665		Hinge Cover, Wheat		Appelez-nous	-
7	5303001664		Hinge Cover, Avocado		Appelez-nous	-
7	5308012820		Hinge Cover, White		Appelez-nous	-
7	5303001666		Hinge Cover, Coffee		Appelez-nous	-
7	5308012933		Hinge Cover, Almond		Appelez-nous	-
8	5303001271		Hinge, Bottom (2)				$ 102.38
9	5303001038		Washer, Hinge Pin (4)				$ 13.34
10	5303001272		Shim, Hinge (6)		Appelez-nous	-
11	08012270		Decorative Plug		Appelez-nous	-
12	5317154002		Grille		Appelez-nous	-
13	5308000847		Clip, Grille (2)				$ 5.39
14	5308000118		Roller Assy (2)		Appelez-nous	-
15	5303208475		Light Switch (2)		Appelez-nous	-
16	5303001026		Defrost Pan		Appelez-nous	-
17	5303209723		Drain Outlet & Tube		Appelez-nous	-
18	5308000853		Heat Conductor		Appelez-nous	-
19	5303006543		Coil Cover, Upper		Appelez-nous	-
20	5308000097		Support, Cover (2)		Appelez-nous	-
21	5303001219		Gasket, Cover (2)		Appelez-nous	-
22	5303006765		Gasket, Cover, Rh		Appelez-nous	-
23	5317423401		Gasket, Cover, Lh		Appelez-nous	-
24	5308000823		Coil Cover - Lower		Appelez-nous	-
25	5303001250		Support, Cover (5)		Appelez-nous	-
26	5303007420		Gasket, Cover (2)		Appelez-nous	-
27	5308000738		Bracket-cover Mtg		Appelez-nous	-
28	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
29	218906802		Lt Socket-freezer   (Replaces: 5308000815)				$ 17.72
30	5303001179		Lt Bulb-freezer		Appelez-nous	-
31	5303916444		Mullion-white		Appelez-nous	-
31	3916445		Mullion, Avocado		Appelez-nous	-
31	5303916447		Mullion, Coffee		Appelez-nous	-
31	3916446		Mullion, Wheat		Appelez-nous	-
31	5303916448		Mullion, Almond		Appelez-nous	-
33	5316445232		Light Shield, Freezer		Appelez-nous	-
34	5303271921		Light Shield-ref		Appelez-nous	-
35	5303001213		Support, Shield (8)		Appelez-nous	-
36	5303001030		Roller, Rear (2)				$ 17.80
37	5308000266		Pin, Roller (2)		Appelez-nous	-
38	5303001028		Push Nut (2)		Appelez-nous	-
39	5316491203		Damper, Meat Keeper		Appelez-nous	-
*40850	5303001288		Plug-refrig Liner (4)		Appelez-nous	-
*40850	5308016571		Plug, Freezer Liner (3)				$ 4.79
*40850	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
10A	5308000013		Shoulder Pin (2) (non-illustrated)		Appelez-nous	-
10B	5300077210		Speed Nut (2) (non-illustrated)		Appelez-nous	-
14A	5308017044		Screw-roller Mtg (2) (non-illustrated)				$ 6.34
19A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
19B	5303208309		Plug-short Test Hole (non-illustrated)				$ 45.50
27A	5308009617		Lock Washer (2) (non-illustrated)		Appelez-nous	-
27B	5303001230		Screw - Bracket (non-illustrated)		Appelez-nous	-
31A	5300169100		Clip - Mullion (3) (non-illustrated)		Appelez-nous	-
31A	5303001281		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
4A	5303001062		Hinge - Top Lh (non-illustrated)				$ 117.02
4B	241710601		Screw   (Replaces: 5303001479)				$ 13.46
4C	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
8A	5303001041		Screw-hinge Mtg (4) (non-illustrated)		Appelez-nous	-
8B	5303001273		Twin Nut (4) (non-illustrated)		Appelez-nous	-
