01 - Freezer Compartment
02 - Freezer Door

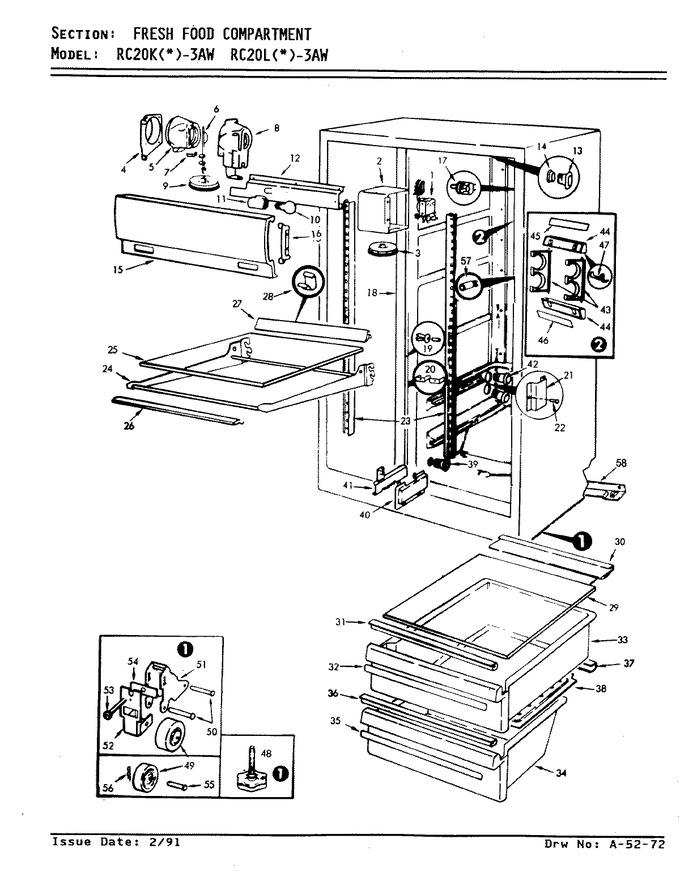

03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Ice & Water Dispenser
06 - Ice Maker & Bin
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 401012-1 | Screw, Control Mounting |
|
- | |||||
| 1 | 52881-41 | Control, Temperature |
|
- | |||||
| 1 | 67692-1 | Insulation, Control |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 2 | 53682-10 | Housing, Temperature Control |
|
- | |||||
| 3 | 29893-7 | Knob, Temp. Control |
|
- | |||||
| 4 | 53835-2 | Orifice, Freezer Control |
|
- | |||||
| 5 | 58767-1 | Insulation, Housing |
|
- | |||||
| 6 | 68610-2 | Baffle, Freezer Control |
|
- | |||||
| 7 | 52648-1 | Spring, Baffle |
|
- | |||||
| 8 | 67354-1 | Housing, Frz. Control |
|
- | |||||
| 8 | 400027-1 | Screw |
|
- | |||||
| 9 | 400001-1 | Screw |
|
- | |||||
| 9 | 29893-12 | Knob |
|
- | |||||
| 10 | W11679940 | Bulb, Light (Replaces: 31956-1) |
|
Immediately | $ 10.17 | ||||
| 11 | 29814-2 | Receptacle, Light |
|
- | |||||
| 12 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 12 | 59740-1 | Housing |
|
- | |||||
| 13 | 57410-1 | Tunnel |
|
- | |||||
| 14 | 57411-1 | Retainer |
|
- | |||||
| 15 | 65578-31 | Shield, Light |
|
- | |||||
| 16 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 16 | 53686-2 | Support |
|
- | |||||
| 17 | 65512-1 | Spacer |
|
- | |||||
| 17 | 68916-1 | Light Switch |
|
- | |||||
| 18 | 67000-1-WW | Mullion Bar (white) |
|
- | |||||
| 18 | 67000-1-AM | Mullion Bar (almond) |
|
- | |||||
| 19 | 59920-13 | Stud, (white) |
|
- | |||||
| 19 | 59920-9 | Stud, (alm) |
|
- | |||||
| 20 | 67060-1 | Clip, Mullion |
|
- | |||||
| 21 | 62128-1 | Air Deflector |
|
- | |||||
| 22 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 23 | 400037-28 | Screw |
|
- | |||||
| 23 | 58381-4 | Rail, Shelf Support |
|
- | |||||
| 24 | 65618-6 | Frame, Shelf |
|
- | |||||
| 25 | 68139-30 | Glass, Cantilever Shelf |
|
- | |||||
| 26 | 68171-15 | Trim, Cont. Shelf (front) |
|
- | |||||
| 27 | 65276-29 | Trim |
|
- | |||||
| 28 | 22434-1 | Clip |
|
- | |||||
| 29 | 68139-31 | Shelf, Crisper (glass) |
|
- | |||||
| 30 | 66092-1 | Seal |
|
- | |||||
| 31 | 65593-1 | Seal |
|
- | |||||
| 32 | 68124-34 | Insert |
|
- | |||||
| 33 | 66509-13 | Pan, Crisper |
|
- | |||||
| 34 | 66510-13 | Pan, Meat |
|
- | |||||
| 35 | 68124-87 | Insert, Meat Pan |
|
- | |||||
| 36 | 65648-1 | Seal, Meat Pan (front) |
|
- | |||||
| 37 | 65649-1 | Seal, Meat Pan (rear) |
|
- | |||||
| 38 | 65608-5 | Cover, Meat Pan |
|
- | |||||
| 39 | 53726-2 | Tunnel, Air (meat) |
|
- | |||||
| 40 | 65737-2 | Control Housing |
|
- | |||||
| 41 | 56686-4 | Clip |
|
- | |||||
| 41 | 65736-1 | Slide Control, (meat) |
|
- | |||||
| 42 | 53726-1 | Air Tunnel |
|
- | |||||
| 43 | 56519-4 | Rack, Wine |
|
- | |||||
| 43 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 44 | 65689-1 | Support, Wine Rack |
|
- | |||||
| 46 | 68821-9 | Insert |
|
- | |||||
| 47 | 58057-1 | Spring, Wine Rack |
|
- | |||||
| 48 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 50 | 64965-3 | Pin, Wheel (rear) |
|
- | |||||
| 51 | 62794-1 | Bracket, Wheel |
|
- | |||||
| 52 | 62795-1 | Faceplate Bracket |
|
- | |||||
| 53 | 56487-2 | Screw, Wheel Adjustment |
|
- | |||||
| 54 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 54 | 59101-1 | Tapping Plate, Wheel |
|
- | |||||
| 55 | 62580-1 | Pivot Pin, Wheel (rear) |
|
- | |||||
| 56 | 62581-1 | Clip, Retaining Wheel (rear) |
|
- | |||||
| 57 | 19530-2 | Nylon Nut |
|
- | |||||
| 58 | 67255-1 | Support Rail |
|
- | |||||
| 58 | 3400518 | Screw (Replaces: 65275-42) |
|
$ 11.68 |
