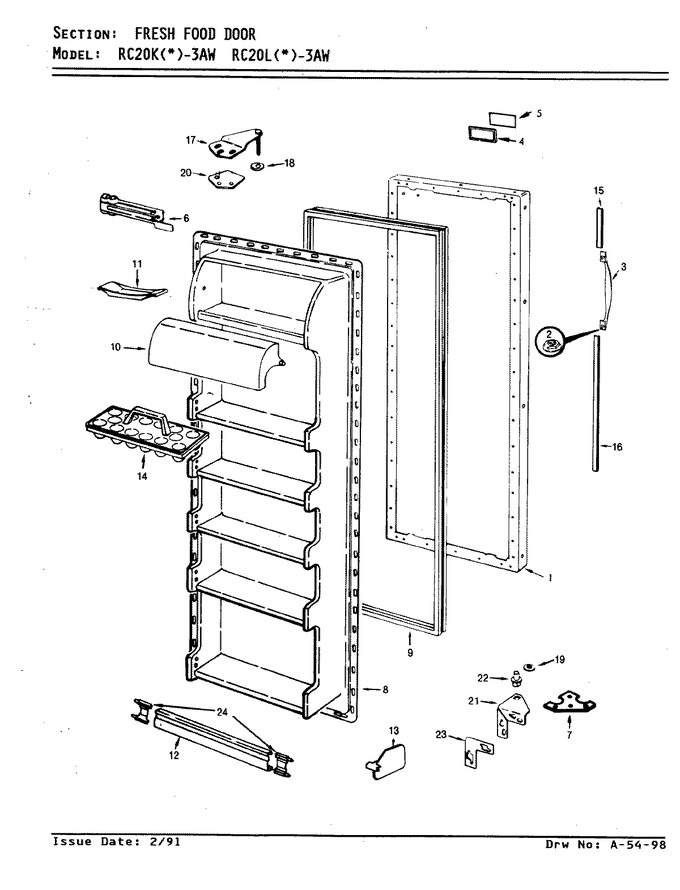

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68458-3-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	434003-506		Fastener		Appelez-nous	-
3	68656-4		Door Handle----na		Appelez-nous	-
3	65275-37		Screw, Handle		Appelez-nous	-
4	66981-1		Bezel		Appelez-nous	-
5	66982-14		Nameplate (blk)		Appelez-nous	-
6	52614-1		Bracket, Closer		Appelez-nous	-
6	54485-1		Closer, Door		Appelez-nous	-
6	52613-1		Insulation, Closer		Appelez-nous	-
6	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
7	65964-2		Tapping Plate		Appelez-nous	-
8	65275-5		Screw		Appelez-nous	-
8	65944-12		Liner, Door		Appelez-nous	-
9	66929-27		Gasket		Appelez-nous	-
10	66184-393		Door, Dairy		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	59258-101		Trim, Door Shelf		Appelez-nous	-
13	66645-4		Organizer, Pick-off Shelf		Appelez-nous	-
14	60066-1		Tray, Egg		Appelez-nous	-
15	68614-3		Trim, Handle Extension (upper)		Appelez-nous	-
16	68614-4		Trim, Handle Extension		Appelez-nous	-
17	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
17	53709-22		Hinge, Upper		Appelez-nous	-
17	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	403100-801		Screw		Appelez-nous	-
21	67714-10		Hinge, Lower		Appelez-nous	-
22	68788-1		Hinge Pin		Appelez-nous	-
23	60626-1		Shim, Lower Hinge		Appelez-nous	-
24	65246-1		Retainer				$ 5.04
24	RA95060-1		Insulation Kit		Appelez-nous	-
