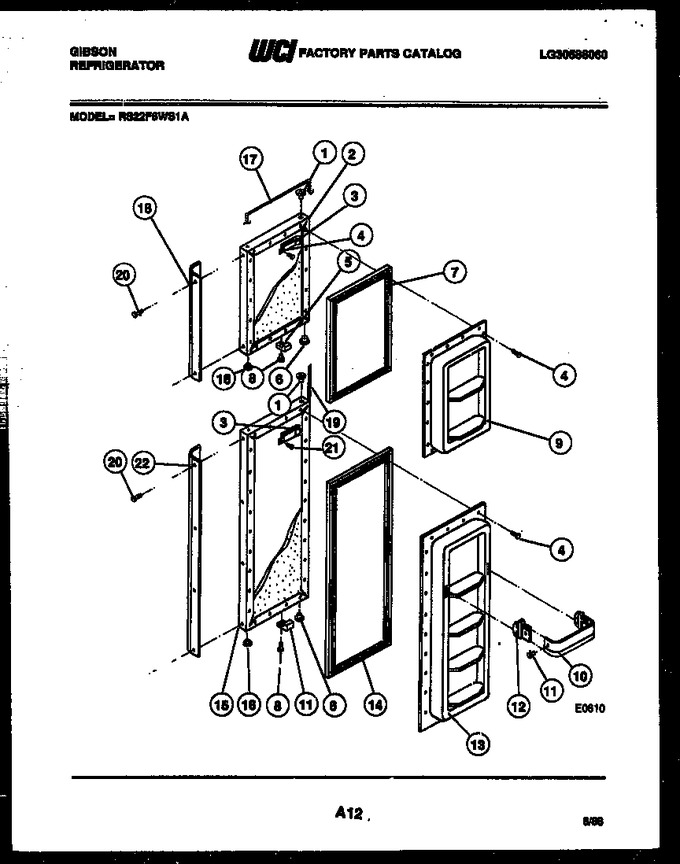

02 - Refrigerator Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G183139		Bearing-hinge Upper (2)		Appelez-nous	-
2	G179402-10		Panel-exterior-coffee		Appelez-nous	-
2	G179402-11		Panel-exterior-almond		Appelez-nous	-
2	G179402-09		Panel-exterior-wheat		Appelez-nous	-
2	G179402-08		Panel-exterior-avocado		Appelez-nous	-
2	G179402		Panel-exterior-white		Appelez-nous	-
3	G161119		Closer (2)		Appelez-nous	-
4	G162585		Screw		Appelez-nous	-
5	G169904		Bumper-light Sw		Appelez-nous	-
6	G183138		Bearing-hinge Lower (2)		Appelez-nous	-
7	G180551-04		Gasket Upper		Appelez-nous	-
8	G169729		Screw 8 X 32 X 1/2 (2)		Appelez-nous	-
9	G169488-02		Panel-interior Upper		Appelez-nous	-
10	G154541-46		Rack-door (6)		Appelez-nous	-
11	G165376		Bumper-light Sw.		Appelez-nous	-
12	G170015-02		Support-door Rk Lh (12)		Appelez-nous	-
13	G169489-02		Panel-interior Lower		Appelez-nous	-
14	G180551-05		Gasket Lower		Appelez-nous	-
15	G170478		Panel-exterior-white		Appelez-nous	-
15	G170478-08		Panel-exterior-avocado		Appelez-nous	-
15	G170478-09		Panel-exterior-wheat		Appelez-nous	-
15	G170478-10		Panel-exterior-coffee		Appelez-nous	-
15	G170478-11		Panel-exterior-almond		Appelez-nous	-
16	G152308-01		Button-plug (2)		Appelez-nous	-
17	G170573-04		Trim-door		Appelez-nous	-
18	G170619-01		Handle-upper		Appelez-nous	-
19	G167150-07		Trim-door		Appelez-nous	-
20	G185566		Screw		Appelez-nous	-
21	G162585		Screw		Appelez-nous	-
22	G170619-02		Handle Lower		Appelez-nous	-
12A	G170016-02		Support-door Rk Rh (12) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
