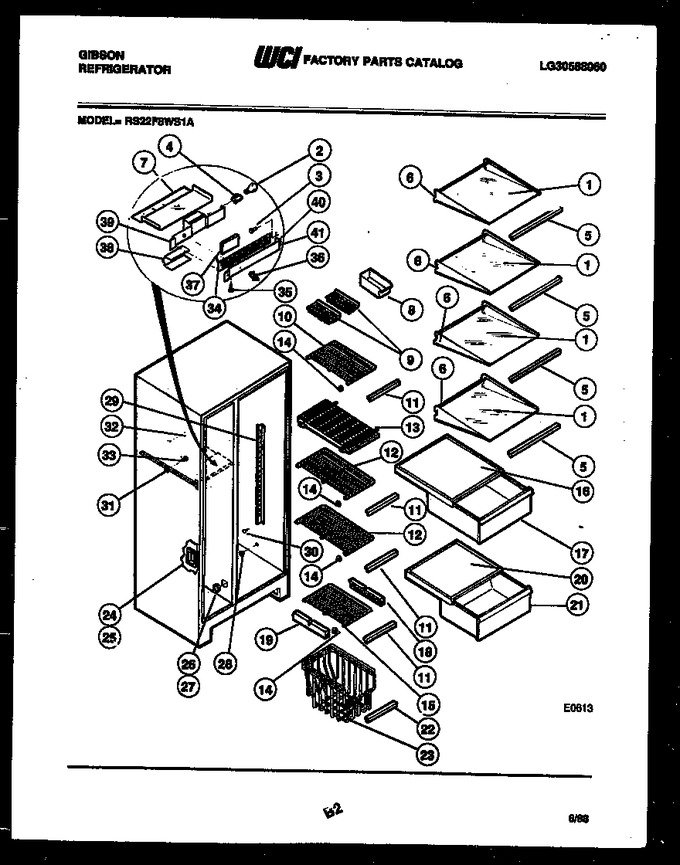

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G171654-44 | Shelf-glass (4) |
|
- | |||||
| 2 | G25806 | Bulb Light |
|
- | |||||
| 3 | G183103 | Screw (2) |
|
- | |||||
| 4 | G168302 | Socket Light |
|
- | |||||
| 5 | G172410-01 | Trim-shelf (4) |
|
- | |||||
| 6 | G186156-03 | Frame-shelf (4) |
|
- | |||||
| 7 | G169635 | Moulding-3 Door |
|
- | |||||
| 8 | G163022-03 | Container, Ice |
|
- | |||||
| 9 | G156376-13 | Ice Tray-plastic (2) |
|
- | |||||
| 10 | G169658-06 | Shelf-freezer |
|
- | |||||
| 11 | G141727-32 | Trim-shelf (4) |
|
- | |||||
| 12 | G169658-05 | Shelf-freezer (2) |
|
- | |||||
| 13 | G169712 | Shelf-freezer Plastic |
|
- | |||||
| 14 | G167565 | Grommet-shelf (10) |
|
- | |||||
| 15 | G169658-06 | Shelf-freezer |
|
- | |||||
| 16 | G169711-02 | Cover-crisper |
|
- | |||||
| 17 | G179709-03 | Panel Storage Upper |
|
- | |||||
| 18 | G168986 | Hanger, Basket, Rh |
|
- | |||||
| 19 | G168987 | Hanger, Basket, Lh |
|
- | |||||
| 20 | G169724-02 | Cover-crisper |
|
- | |||||
| 21 | G179710-02 | Pan-storage Upper |
|
- | |||||
| 22 | G172410-20 | Trim-basket |
|
- | |||||
| 23 | 3017211 | Basket |
|
- | |||||
| 24 | G166800 | Ferrule Inner |
|
- | |||||
| 25 | G166801 | Ferrule Outer |
|
- | |||||
| 26 | G166802 | Ferrule-inner |
|
- | |||||
| 27 | G166803 | Ferrule-outer |
|
- | |||||
| 28 | G162892-01 | Button-plug (4) |
|
- | |||||
| 29 | G170694 | Channel-shelf (2) |
|
- | |||||
| 30 | G99167 | Screw 1/4 X 1 (4) |
|
- | |||||
| 31 | G169709 | Channel-wiring |
|
- | |||||
| 32 | G187599 | Button, Plug (3) |
|
- | |||||
| 33 | G163980 | Screw |
|
- | |||||
| 34 | G169756 | Heater-mullion |
|
- | |||||
| 35 | G99660 | Screw 8-18 X 3/8 |
|
- | |||||
| 36 | G149762 | Switch Light |
|
- | |||||
| 37 | G175156 | Insulation-mullion |
|
- | |||||
| 38 | G169516 | Cover-light Socket |
|
- | |||||
| 39 | G169529 | Strap-light Mounting |
|
- | |||||
| 40 | G169530-08 | Trim-mullion-avocado |
|
- | |||||
| 40 | G169530-09 | Trim-mullion-wheat |
|
- | |||||
| 40 | G169530-10 | Trim-mullion-coffee |
|
- | |||||
| 40 | G169530-11 | Trim-mullion-almond |
|
- | |||||
| 40 | G169530-01 | Trim-mullion-white |
|
- | |||||
| 41 | G169490-11 | Mullion-almond |
|
- | |||||
| 41 | G169490-01 | Mullion-white |
|
- | |||||
| 41 | G169490-08 | Mullion-avocado |
|
- | |||||
| 41 | G169490-09 | Mullion-wheat |
|
- | |||||
| 41 | G169490-10 | Mullion-coffee |
|
- | |||||
| *10343 | G138399 | Clip-shelf Trim (8) |
|
- |
