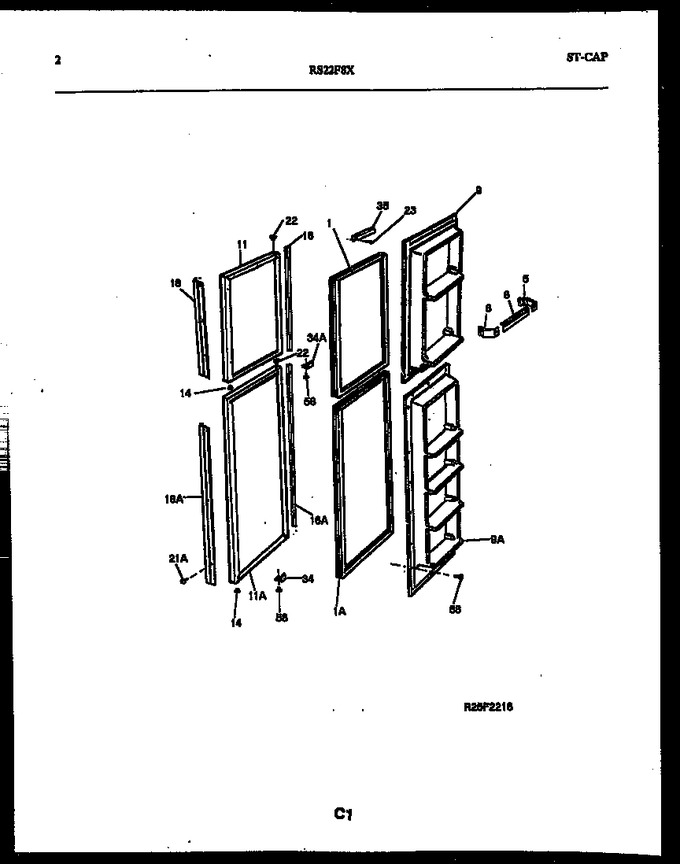

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200799 | Gasket-frzr Door, Magnetic, Upper |
|
- | |||||
| 5 | 5303274244 | Support-door Rack, Rh, (6) |
|
- | |||||
| 6 | 5303274245 | Support-door Rack, Lh, (6) |
|
- | |||||
| 8 | 5303275293 | Rack-door, (6) |
|
- | |||||
| 9 | 5303275329 | Panel-inner Door, Frzr, Upper |
|
- | |||||
| 11 | 5303916996 | Panel-frzr Door, Wheat, Upper |
|
- | |||||
| 14 | 5315230801 | Plug-button, Refr/frzr Door |
|
- | |||||
| 16 | 5303275366 | Trim-frzr Door, Upper |
|
- | |||||
| 18 | 5303282206 | Handle-door, Traditional Oak, Frzr, Upper |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 22 | 5303001022 | Bearing-hinge Upper |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 34 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 35 | 5303200272 | Closer-door |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *48036 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 11A | 5303916993 | Panel-frzr Door, Wheat, Lower |
|
- | |||||
| 16A | 5303275367 | Trim-frzr Door, Lower |
|
- | |||||
| 18A | 5303286659 | Handle-door, Traditional Oak, Frzr, Lower |
|
- | |||||
| 1A | 5303200800 | Gasket-frzr Door, Magnetic, Lower |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 34A | 5308002802 | Bumper-light Switch |
|
$ 16.72 | |||||
| 9A | 5303275328 | Panel-inner Door, Frzr, Lower |
|
- |
