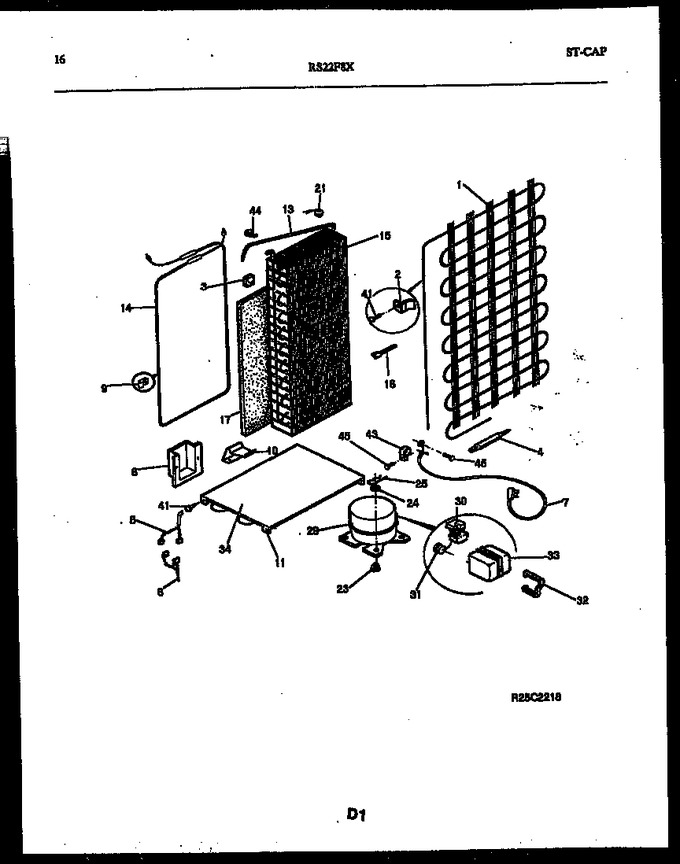

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303007521 | Condenser |
|
- | |||||
| 2 | 5308000296 | Bracket-cond Mtg (4) |
|
$ 30.20 | |||||
| 3 | 5308000828 | Block-coil (4) |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 5 | 3015074 | Harness-wiring, Controls |
|
- | |||||
| 6 | 5308009616 | Harness-wiring, Compr/light Sw |
|
- | |||||
| 7 | 5316254901 | Cord, Elec Service |
|
- | |||||
| 8 | 5303001197 | Cover-wiring |
|
- | |||||
| 9 | 5308002777 | Support-defrost Htr |
|
- | |||||
| 10 | 5308002780 | Bracket-dfr Pan Mtg |
|
- | |||||
| 11 | 5308002782 | Bracket-dfr Plate, (4) |
|
- | |||||
| 13 | 5308017565 | Heat Exchanger, Suction Line |
|
- | |||||
| 14 | 5303007568 | Heater, Defrost |
|
$ 233.05 | |||||
| 15 | 5303916605 | Evaporator Coil |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5303001235 | Insulator-evap |
|
- | |||||
| 21 | 5303917954 | Thermostat, Defrost (Replaces: 5303007540) |
|
Immediately | $ 30.47 | ||||
| 23 | 215175000 | Grommet-compr Mtg, (4) |
|
- | |||||
| 24 | 5308003633 | Washer-compr Mtg |
|
$ 35.67 | |||||
| 25 | 5308003596 | Clip - Compressor Mtg |
|
$ 6.62 | |||||
| 29 | 5308950223 | Compressor-w/ Elec, Service |
|
- | |||||
| 30 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 31 | 5303271616 | Overload |
|
$ 85.20 | |||||
| 32 | 5303006412 | Strap-cover |
|
- | |||||
| 15A | 3206414 | Tube-inlet (non-illustrated) |
|
$ 31.61 | |||||
| 29A | 5303916391 | Capacitor-run (non-illustrated) |
|
- | |||||
| 2A | 5308009617 | Washer, Ext Tooth Lock, No. 10 (non-illustrated) |
|
- |
