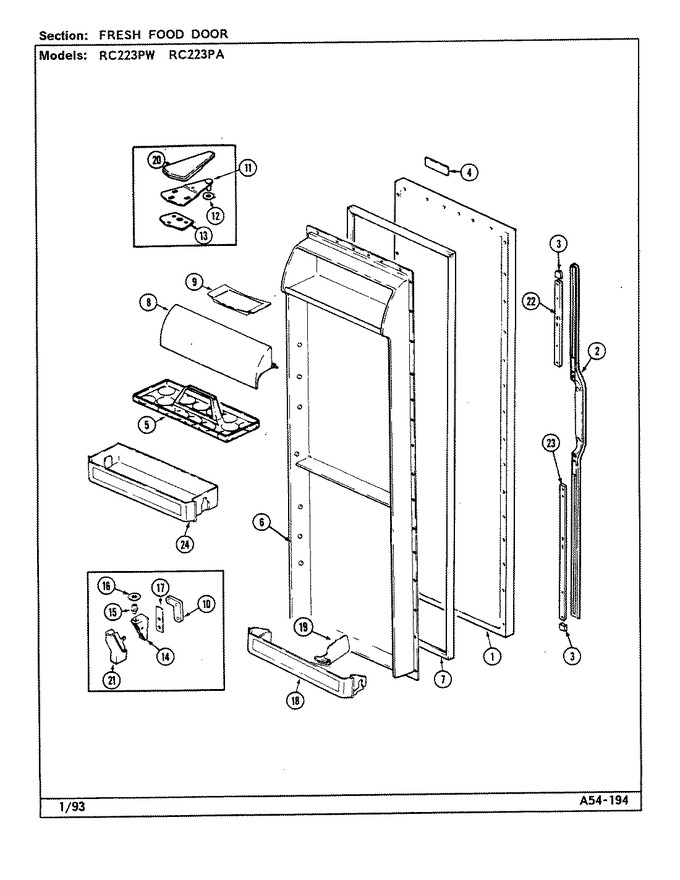

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72341-2-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
2	12000043		Kit, Handle Assy (almond)		Appelez-nous	-
2	W10856122		Screw   (Replaces: 65275-65)				$ 6.98
2	69477-1		Clip		Appelez-nous	-
3	69590-1		End Cap, Handle		Appelez-nous	-
4	66982-32		Nameplate (alm)		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	69242-1		Liner, F.f. Door		Appelez-nous	-
7	70019-4		Gasket, Reffig.		Appelez-nous	-
8	66184-394		Door, Dairy		Appelez-nous	-
9	29936-2		Tray, Butter		Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
10	65275-59		Screw		Appelez-nous	-
11	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
11	53709-26		Hinge Upper		Appelez-nous	-
12	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
13	65031-1		Shim, Upper Hinge		Appelez-nous	-
14	69516-2		Hinge, Lower (blk)		Appelez-nous	-
14	65275-51		Screw, Lower Hinge		Appelez-nous	-
15	69845-1		Pin, Lower Hinge				$ 44.55
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	69510-1		Shim, Lower Hinge		Appelez-nous	-
18	69607-1		Front, Pick-off		Appelez-nous	-
19	66645-6		Organizer Package		Appelez-nous	-
20	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
21	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
22	69586-1		Trim, Handle		Appelez-nous	-
23	69586-2		Trim, Handle		Appelez-nous	-
24	69871-1		Front, Pick-off		Appelez-nous	-
24	69258-1		Closer, Door		Appelez-nous	-
