SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

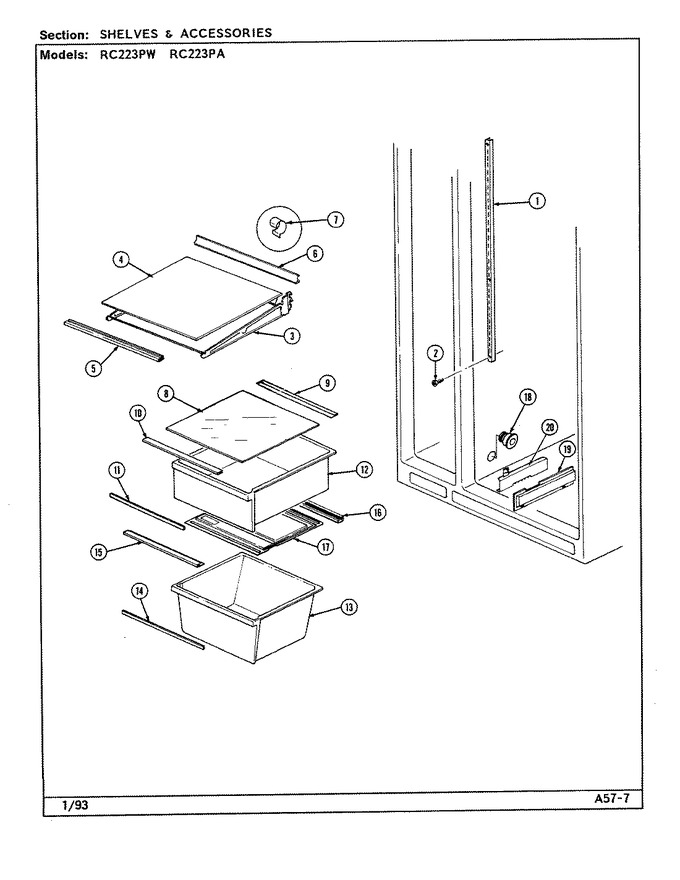

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65618-5		Frame, Shelf		Appelez-nous	-
4	68139-22		Glass, Cantilever Shelf		Appelez-nous	-
5	68171-13		Trim, Cant. Shelves (front)		Appelez-nous	-
6	65276-15		Trim, Shelves (rear)		Appelez-nous	-
7	66333-1		Clip, Shelf Trim		Appelez-nous	-
8	68139-23		Crisper Shelf(glass)		Appelez-nous	-
9	68157-2		Seal, Crisper Pan (rear)		Appelez-nous	-
10	66650-2		Seal, Crisper Pan (front)		Appelez-nous	-
11	68124-83		Insert, Crisper Pan		Appelez-nous	-
12	66509-19		Pan, Crisper		Appelez-nous	-
13	66510-19		Pan, Meat		Appelez-nous	-
14	68124-84		Insert, Meat Pan		Appelez-nous	-
15	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
16	65649-2		Seal, Meat Pan (rear)		Appelez-nous	-
17	65608-6		Cover, Meat Pan		Appelez-nous	-
18	67684-1		Tunnel, Air Return		Appelez-nous	-
19	65737-2		Control Housing		Appelez-nous	-
19	56686-5		Clip, Secondary Seal		Appelez-nous	-
20	65736-1		Slide Control, (meat)		Appelez-nous	-
20	69615-1		Holder, Beverage		Appelez-nous	-
