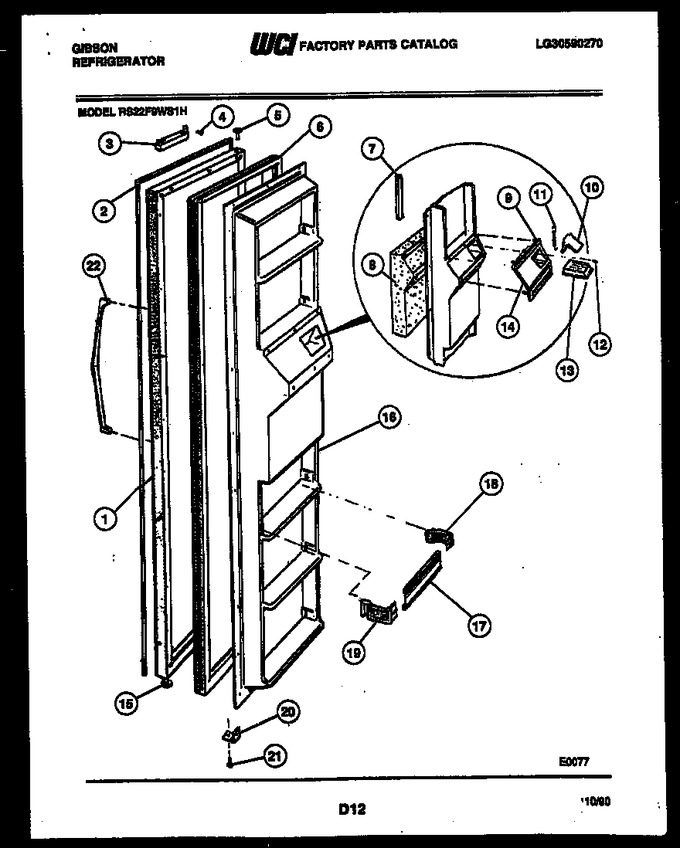

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker And Installation Parts


10 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G188329-11		Freezer Door - Almond		Appelez-nous	-
1	G188329		Freezer Door-white		Appelez-nous	-
1	G188329-08		Freezer Door - Avocado		Appelez-nous	-
1	G188329-09		Freezer Door-wheat		Appelez-nous	-
1	G188329-10		Freezer Door-coffee		Appelez-nous	-
2	G167404-03		Trim-freezer Door		Appelez-nous	-
3	5303200272		Door Closer		Appelez-nous	-
4	3001020		Screw - Closer Mounting		Appelez-nous	-
5	5303001022		Bearing-upper Hinge		Appelez-nous	-
6	5303200474		Gasket, Freezer Door		Appelez-nous	-
7	5303001046		Shield-wiring		Appelez-nous	-
8	5308015556		Insulation-housing		Appelez-nous	-
9	5303001048		Pin-ice Door Hinge		Appelez-nous	-
10	G175040-05		Flipper-ice Door		Appelez-nous	-
11	5308010300		Spring-flipper				$ 36.91
12	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
13	5303211961		Ice Door		Appelez-nous	-
14	G181241-03		Trim Cover - Door Panel		Appelez-nous	-
15	5308010308		Bushing-lower Hinge		Appelez-nous	-
16	G181474-02		Panel-inner Door		Appelez-nous	-
17	G154541-46		Door Rack (5)		Appelez-nous	-
18	3204854		Support Rh (5)		Appelez-nous	-
19	3204855		Support Lh (5)		Appelez-nous	-
20	5308000790		Bumper, Light Switch				$ 3.86
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5316355201		Handle - Freezer Door		Appelez-nous	-
*30579	G176752		Shim-handle (2)		Appelez-nous	-
*30579	G185565		Screw-handle Mounting (2)		Appelez-nous	-
14A	5308017047		Push Nut (6) (non-illustrated)		Appelez-nous	-
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
