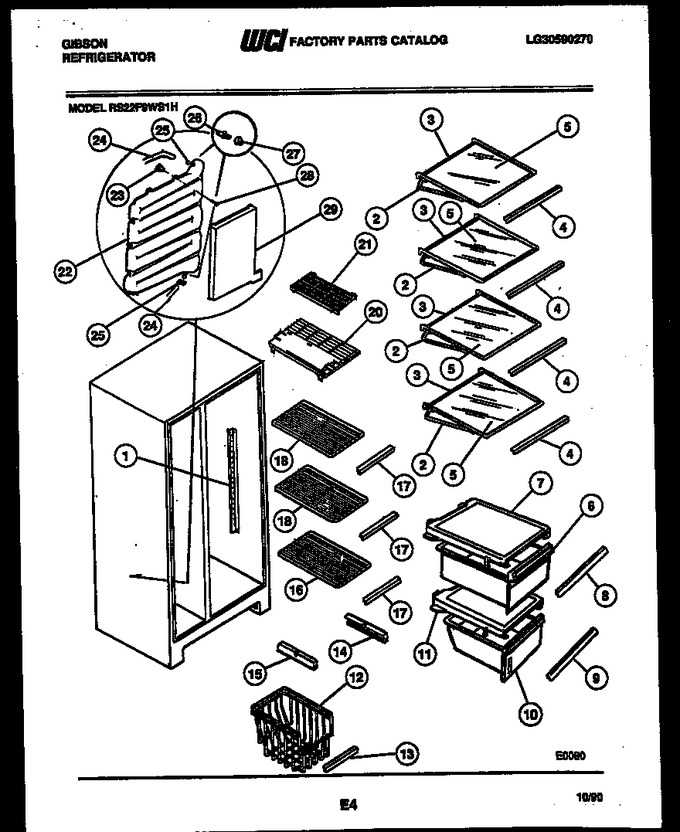

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308002744 | Channel - Rh & Lh |
|
- | |||||
| 2 | 5303209744 | Frame-shelf (4) |
|
- | |||||
| 3 | 5303211143 | Trim - Shelf Rear (4) |
|
- | |||||
| 4 | 5303211142 | Trim - Shelf Front (4) |
|
- | |||||
| 5 | 5303211144 | Glass - Shelf (4) |
|
- | |||||
| 6 | G179709-03 | Pan-storage Upper |
|
- | |||||
| 7 | 5316971102 | Cover, Pan Upper |
|
- | |||||
| 8 | G177343-12 | Trim-pan Upper |
|
- | |||||
| 9 | G177343-11 | Trim-pan Lower |
|
- | |||||
| 10 | G179710-02 | Pan-storage Lower |
|
- | |||||
| 11 | 5316972401 | Cover-pan (lower) |
|
- | |||||
| 12 | 3017211 | Basket - Freezer |
|
- | |||||
| 13 | 3015108 | Trim, Basket |
|
- | |||||
| 14 | 5303001098 | Hanger, Basket, Rh |
|
- | |||||
| 15 | 5303001099 | Hanger, Basket, Lh |
|
- | |||||
| 16 | 5303007123 | Shelf - Freezer Bottom |
|
- | |||||
| 17 | 3016382 | Trim - Snap On (3) |
|
- | |||||
| 18 | 5303007122 | Shelf - Freezer Center (2) |
|
- | |||||
| 20 | 5308015608 | Shelf - Plastic Lower |
|
- | |||||
| 21 | 5303017212 | Shelf - Plastic Upper |
|
- | |||||
| 22 | 5308950104 | Tank-water |
|
- | |||||
| 23 | 5303001185 | Support-tank (3) |
|
- | |||||
| 24 | 5308017042 | Tube-cut To Size (2) |
|
- | |||||
| 25 | 08000807 | Clamp - Tube (2) |
|
- | |||||
| 26 | 5308015614 | Connector-tube (2) |
|
$ 34.57 | |||||
| 27 | 5308015613 | Grommet-tank (2) |
|
- | |||||
| 28 | 5308007097 | Screw (3) |
|
- | |||||
| 29 | 5308010332 | Cover-water Tank |
|
- | |||||
| 18A | 5304509705 | Grommet - Shelf Mounting (6) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 1A | 5308010253 | Screw - Channel Mounting (8) (non-illustrated) |
|
- | |||||
| 20A | G177706-07 | Label - Lower Shelf (non-illustrated) |
|
- | |||||
| 21A | G177706-06 | Label - Upper Shelf (non-illustrated) |
|
- | |||||
| 7A | 5303205880 | Gasket - Cover Upper (2) (non-illustrated) |
|
- |
