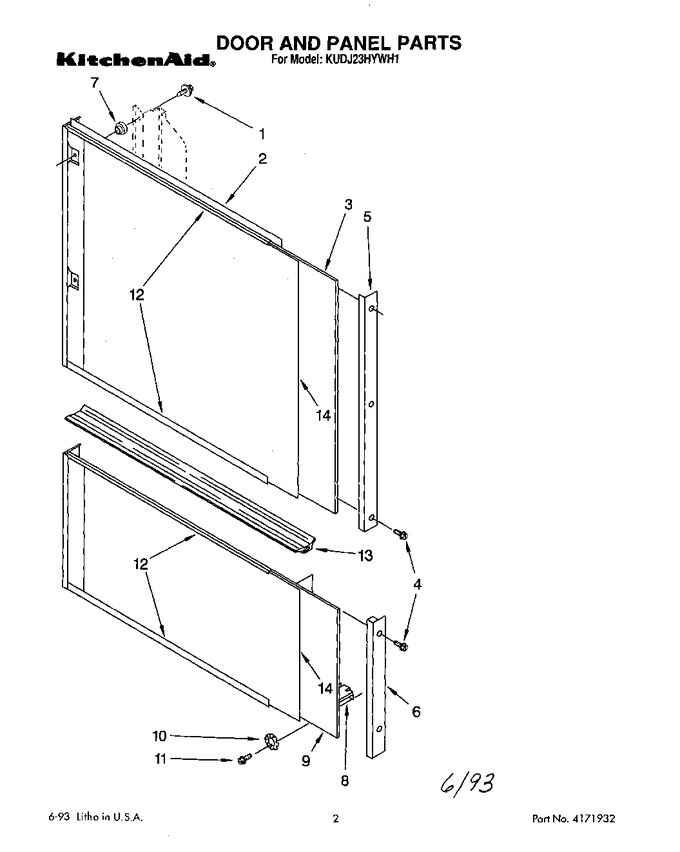

01 - Door And Panel


02 - Blower


03 - Control Panel, Lit/optional


04 - Pump And Motor


05 - Lower Washarm And Strainer


06 - Heater


07 - Fill And Overfill


08 - Upper Wash And Rinse


09 - Frame And Tank


10 - Upper Rack And Track


11 - Lower Rack


12 - Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4162215		Screw		Appelez-nous	-
2	4171670		Upper Mounting Panel Assembly (includes Upper & Lower Trim)		Appelez-nous	-
3	4171462		Filler (upper Panel)		Appelez-nous	-
4	4171463		Screw (10)		Appelez-nous	-
5	9740456		Side Trim (upper Panel)		Appelez-nous	-
6	4171673		Side Trim (lower Panel)		Appelez-nous	-
7	4162735		Grommet, Panel		Appelez-nous	-
8	4171672		Lower Mounting Panel Assembly (includes Upper & Lower Trim)		Appelez-nous	-
9	4171464		Filler (lower Panel)		Appelez-nous	-
10	4159494		Lock Washer		Appelez-nous	-
11	4159421		Screw		Appelez-nous	-
12	4171671		Trim, Panel (upper & Lower)		Appelez-nous	-
13	9740868		Channel, Evaporation				$ 45.54
14	4169404		Panel Insert Kits (silver/onyx Black)		Appelez-nous	-
14	4162835		Panel Insert Kits (fresh Avocado/ Coffee)		Appelez-nous	-
14	4169400		Panel Insert Kits (stainless Steel)				$ 125.57
14	4169402		Panel Insert Kits (platinum/toast)		Appelez-nous	-
14	4169403		Panel Insert Kits (sand/onyx Black)		Appelez-nous	-
14	4162834		Panel Insert Kits (harvest Gold/almond)		Appelez-nous	-
14	4171534		Panel Insert Kits (almond/black)		Appelez-nous	-
14	4162836		Panel Insert Kits (almond/white)		Appelez-nous	-
14	4162833		Panel Insert Kits (white/black)		Appelez-nous	-
14	4171096		Panel Insert Kits (harvest Gold/onyx Black)		Appelez-nous	-
