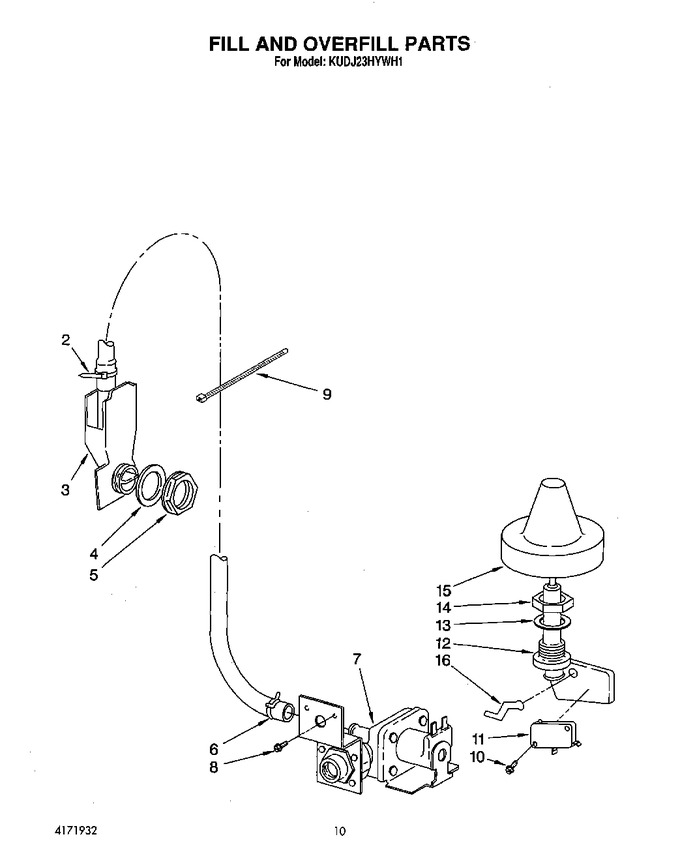

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4162103		Clamp, Hose		Appelez-nous	-
3	9741568		Water Inlet Assembly		Appelez-nous	-
4	4161545		Gasket, Rubber		Appelez-nous	-
5	4171300		Nut (fill Air Gap)				$ 34.65
6	4161505		Clamp, Hose		Appelez-nous	-
7	3372626		Fill Valve Assembly				$ 82.66
8	9740980		Screw, 10-16 X 1/2		Appelez-nous	-
9	WPW10339879		Strap (flexible Connector To Tank)   (Replaces: 309330)				$ 7.11
10	4159424		Screw, 4-40 X 3/4		Appelez-nous	-
11	9740811		Switch, Overfill Control		Appelez-nous	-
12	4161732		Standpipe, Overfill		Appelez-nous	-
13	WP8531743		Gasket, Flat   (Replaces: 4161670)			Immediately	$ 42.54
14	4161596		Nut, Standpipe		Appelez-nous	-
15	4171216		Float & Retainer Assembly		Appelez-nous	-
16	4171116		Lever, Overflow Switch		Appelez-nous	-
