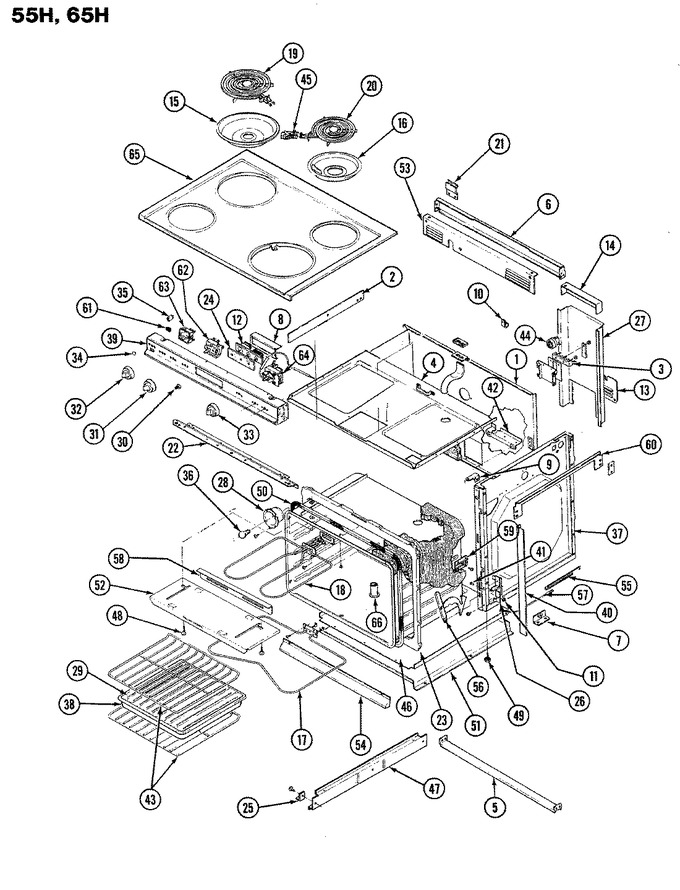

01 - Body
02 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F108-80 | Back, Main | 01 |
|
- | ||||
| 1 | 1430276 | Kit, Backguard | 01 |
|
- | ||||
| 2 | 3601F106-51 | Baffle, Side Panel | 01 |
|
- | ||||
| 3 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 4 | 4011F082-23 | Box, Burner | 01 |
|
- | ||||
| 5 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 6 | 3802F071-80 | Brace, Main Top | 01 |
|
- | ||||
| 7 | 3801F017-34 | Bracket, Cable Roller | 01 |
|
- | ||||
| 8 | 3801F193-51 | Bracket, Clock Mtg | 01 |
|
- | ||||
| 9 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 9 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 9 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 05 |
|
Immediately | $ 4.69 | |||
| 9 | 3818F022-51 | Channel, Wire Side | 01 |
|
- | ||||
| 9 | W10124350 | Not Required Part Or See Note Brkt, Anti Tip (not Required) | 01 |
|
- | ||||
| 9 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 05 |
|
$ 26.33 | ||||
| 9 | 3818F021-51 | Channel, Wire Rear | 01 |
|
- | ||||
| 10 | 7111P002-60 | Clamp, Wire 3/4 | 01 |
|
- | ||||
| 11 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 11 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 12 | 7602P097-60 | Clock | 01 |
|
- | ||||
| 13 | 4005F302-51 | Cover Access | 01 |
|
- | ||||
| 14 | 4005F005-45 | Cover | 01 |
|
- | ||||
| 14 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 15 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 01 |
|
Immediately | $ 15.56 | |||
| 16 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 01 |
|
Immediately | $ 12.05 | |||
| 17 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 04 |
|
$ 133.20 | ||||
| 17 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 01 |
|
$ 133.20 | ||||
| 18 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 01 |
|
$ 160.58 | ||||
| 18 | WPY04000048 | Element, Broil (Replaces: 7406P076-60) | 08 |
|
$ 160.58 | ||||
| 19 | WPY04000035 | Element, Giant Surface (Replaces: 7406P014-60) | 01 |
|
$ 160.60 | ||||
| 20 | WPY04000036 | Element, Std. Surface (Replaces: 7406P017-60) | 01 |
|
$ 88.70 | ||||
| 21 | 1430241 | Ks-60 Filler Strip | 01 |
|
- | ||||
| 21 | 7706P170-60 | Hinge, Main Top | 01 |
|
- | ||||
| 22 | 4012F013-80 | Front, Burner Box | 01 |
|
- | ||||
| 23 | 2201F060-23 | Front, Oven Upper | 01 |
|
- | ||||
| 24 | 7902P316-60 | Glass, Clock/backguard | 01 |
|
- | ||||
| 25 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 25 | 8016P008-60 | Glide, Oven Door Hinge | 01 |
|
- | ||||
| 26 | 7106P040-60 | Hinge | 01 |
|
- | ||||
| 27 | 4001F051-51 | Housing,main Wire | 01 |
|
- | ||||
| 28 | 4001F016-23 | Housing, Lamp | 01 |
|
- | ||||
| 29 | Y3413F01619 | Insert, Broil Pan | 12 |
|
- | ||||
| 29 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 30 | 7711P422-60 | Knob, Clock | 01 |
|
- | ||||
| 30 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 31 | 7739P019-60 | Knob, Selector | 01 |
|
- | ||||
| 32 | 7737P015-60 | Knob, Surface Switch | 01 |
|
- | ||||
| 33 | WP7711P159-60 | Knob, Thermostat (Replaces: 7711P218-60) | 01 |
|
$ 19.28 | ||||
| 34 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 35 | 7407P015-60 | Light, Indicator | 01 |
|
- | ||||
| 36 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 37 | 4009W030-80 | Lining Assy, Inner Side | 01 |
|
- | ||||
| 38 | Y3401F02019 | Pan, Broil | 12 |
|
- | ||||
| 38 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 39 | 2614F023-09 | Panel Manifold | 01 |
|
- | ||||
| 40 | 2618F072-71 | Panel Side Trim Wht | 07 |
|
- | ||||
| 40 | 2618F071-71 | Panel Side Trim Wht | 07 |
|
- | ||||
| 41 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 42 | 3605F156-51 | Plate,conduit | 01 |
|
- | ||||
| 42 | 3605F146-51 | Plate, Conduit Reinforcement | 01 |
|
$ 6.06 | ||||
| 42 | 7718P003-60 | Plug | 01 |
|
- | ||||
| 43 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 44 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 45 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 46 | 3804F093-80 | Retainer, Bottom Ins. | 01 |
|
- | ||||
| 47 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 48 | 7101P005-60 | Screw | 01 |
|
- | ||||
| 48 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 49 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 50 | 7212P002-60 | Seal, Oven | 01 |
|
- | ||||
| 50 | 8312P019-60 | Shaft, Bit Generator | 01 |
|
- | ||||
| 51 | 3604F003-80 | Shield, Bottom | 01 |
|
- | ||||
| 52 | 3604F092-45 | Shield, Broil | 01 |
|
- | ||||
| 53 | 3604F056-80 | Shield, Housing | 01 |
|
- | ||||
| 54 | 3604F091-34 | Shield, Switch | 01 |
|
- | ||||
| 54 | 3604F067-51 | Shield | 01 |
|
- | ||||
| 54 | 3604F017-45 | Shield | 01 |
|
- | ||||
| 54 | 3604W155-70 | Shield, Lower Vent (blk) | 10 |
|
- | ||||
| 54 | 3604W002-70 | Shield, Lower Vent | 01 |
|
- | ||||
| 55 | 7803P057-60 | Spring | 01 |
|
- | ||||
| 56 | 3420A034-34 | Stop Assy., Hinge | 01 |
|
- | ||||
| 57 | 8019P001-60 | Strap Cable | 01 |
|
- | ||||
| 58 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 59 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 60 | 3807F194-80 | Support, Panel Unit | 01 |
|
- | ||||
| 61 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 62 | 7403P031-60 | Switch, Selector | 01 |
|
- | ||||
| 63 | W11122006 | Switch, Inf. Control (Replaces: 7403P168-60) | 01 |
|
$ 145.12 | ||||
| 64 | 7404P029-60 | Thermostat | 01 |
|
- | ||||
| 65 | 7706P042-60 | Trim, Cabinet Front | 01 |
|
- | ||||
| 65 | 2002W049-91 | Top Assy, Main White | 01 |
|
- | ||||
| 66 | 8026P001-60 | Tube | 01 |
|
- |
