SELECT A DIAGRAM
01 - Body

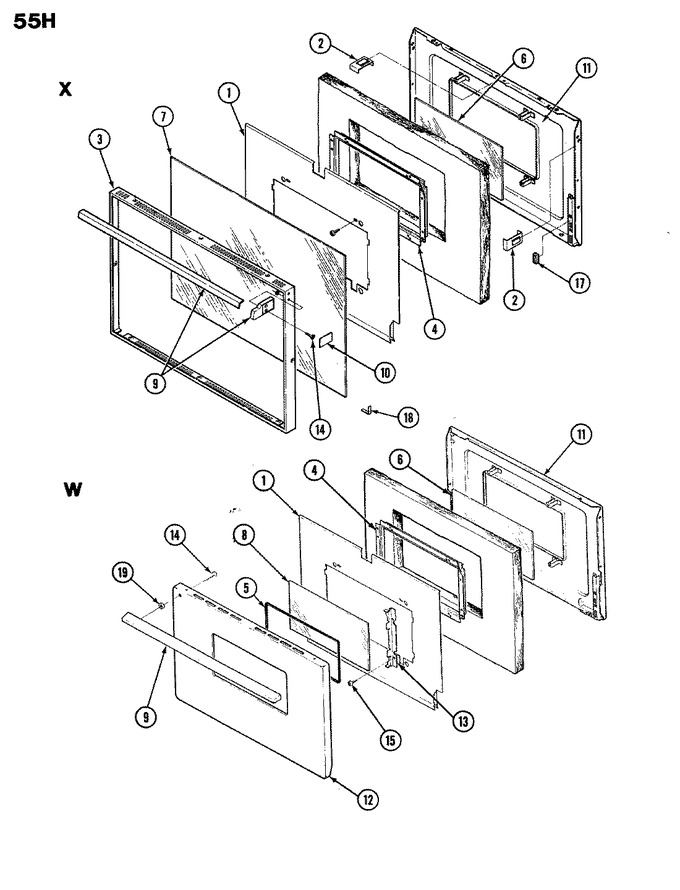

02 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094-51 | Baffle, Oven Door | 01 |
|
- | ||||
| 4 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 5 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 8 | 7902P051-60 | Glass | 01 |
|
- | ||||
| 9 | 7701P030-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 11 | 2402W151-16 | Lining Assy | 01 |
|
- | ||||
| 11 | 2402W151-19 | Lining Door | 06 |
|
- | ||||
| 12 | 2401F042-71 | Panel, Door (wht) | 01 |
|
- | ||||
| 13 | 3804F095-80 | Retainer, Glass | 01 |
|
- | ||||
| 14 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 19 | 7109P019-60 | Washer | 01 |
|
- | ||||
| 19 | 8010P002-60 | Spacer, Handle | 01 |
|
- |
