Diagram for 02 - Freezer Door Parts
02 - Freezer Door Parts

Diagram for 03 - Refrigerator Door Parts
03 - Refrigerator Door Parts

Diagram for 04 - Cabinet Parts
04 - Cabinet Parts

Diagram for 05 - Shelves And Supports
05 - Shelves And Supports

Diagram for 06 - Refrigerator Control Assembly, Damp
06 - Refrigerator Control Assembly, Damp

Diagram for 07 - System And Automatic Defrost Parts
07 - System And Automatic Defrost Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303916710 Freezer Door-avocado Appelez-nous -
2 5303200272 Door Closer Appelez-nous -
3 5306588927 Screw-closer Mounting Appelez-nous -
4 5303001022 Hinge Bearing, Upper Appelez-nous -
5 5303007739 Insulation, Bulk Appelez-nous -
6 5303200474 Gasket-freezer Appelez-nous -
7 G164835-01 Inner Panel-freezer Appelez-nous -
8 3015104 Rack-freezer Door (6) Appelez-nous -
9 5316101801 Support-rs (6) Appelez-nous -
10 5316108001 Support-ls (6) Appelez-nous -
11 5315230801 Plug-door Bottom Appelez-nous -
12 5308013645 Screw-handle Mtg (2) Appelez-nous -
13 3205586 Handle-avoc Appelez-nous -
1A 5308000790 Bumper-light Switch (non-illustrated) Special Order $ 3.86

1B 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41

4A 5308012007 Hinge Bearing - Lower (non-illustrated) Appelez-nous -
7A 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41


    View Diagram in Separate Window     Print Icon   Print Part List

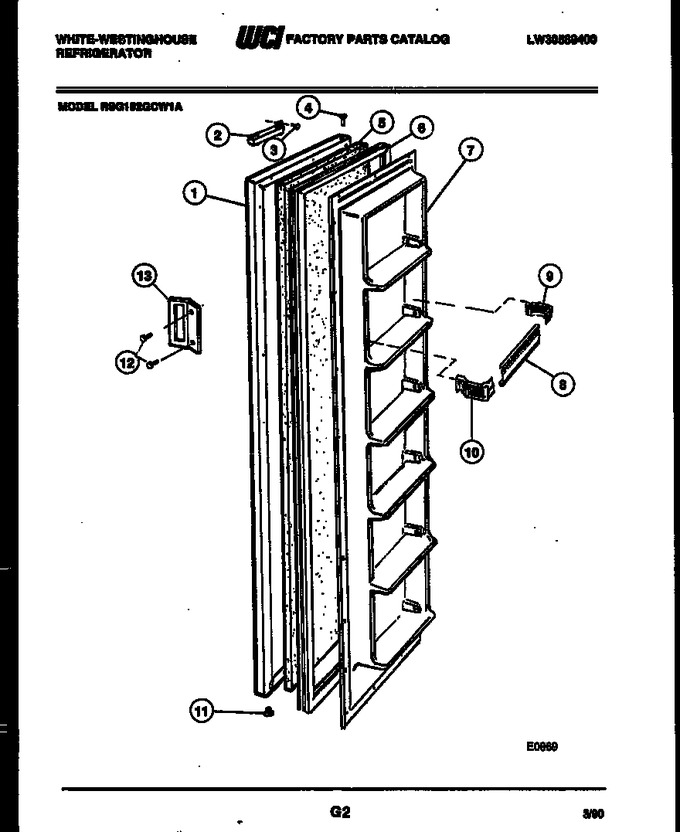

Diagram for RSG192GCV1A
