Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303916705 Refrigerator Door-avocado Appelez-nous -
2 5303001022 Hinge Bearing, Upper Appelez-nous -
3 5308013645 Screw, Handle (2) Appelez-nous -
4 5303007739 Insulation, Bulk Appelez-nous -
5 5303200272 Door Closer Appelez-nous -
6 5306588927 Screw-closer Mounting Appelez-nous -
7 5303201811 Gasket-refrigerator Appelez-nous -
8 5303016725 Inner Panel-refrigerator Appelez-nous -
9 5316473116 Dairy Door Appelez-nous -
10 G161019-16 Rack-refrigerator Door (4) Appelez-nous -
11 5316101801 Support-rs (4) Appelez-nous -
12 5316108001 Support-ls (4) Appelez-nous -
13 5308000790 Bumper, Light Switch Special Order $ 3.86

14 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41

15 3205586 Handle-avoc Appelez-nous -
1A 5315230801 Plug - Door Bottom (non-illustrated) Appelez-nous -
2A 5308012007 Hinge Bearing - Lower (non-illustrated) Appelez-nous -
8A 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41


    View Diagram in Separate Window     Print Icon   Print Part List

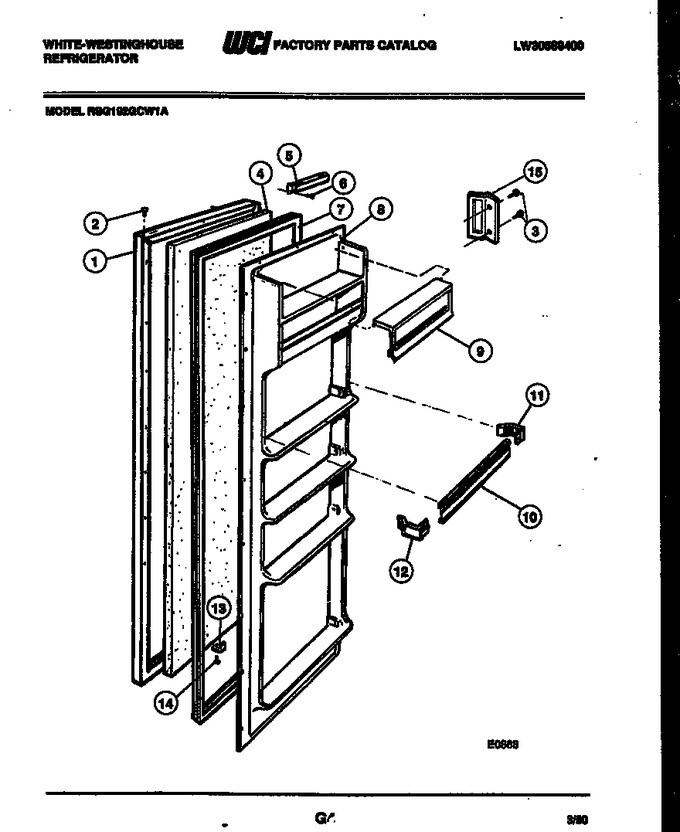

Diagram for RSG192GCV1A
