View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door (ser. Pre. 11)
03 - Door (series 01)
04 - Door (series 26)
05 - Door (series 27)
06 - Oven
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

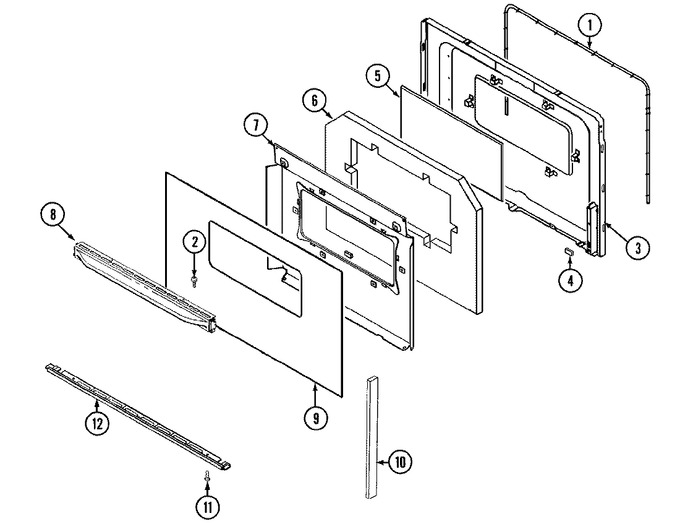

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 26 |
|
Immediately | $ 56.83 | |||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 26 |
|
$ 15.94 | ||||
| 3 | 74003248 | Lining, Door | 26 |
|
- | ||||
| 4 | 8010P085-60 | Spacer, Rubber | 26 |
|
- | ||||
| 5 | 7902P319-60 | Glass, Door (inner)----na | 26 |
|
- | ||||
| 6 | 7002P158-60 | Insulation, Door | 26 |
|
- | ||||
| 7 | 3601F240-80 | Baffle, Door | 26 |
|
- | ||||
| 7 | 7101P209-60 | Screw | 26 |
|
- | ||||
| 8 | 7701P144-60 | Handle, Door (blk) | 26 |
|
- | ||||
| 9 | 7902P321-60 | Glass, Door (blk) | 26 |
|
- | ||||
| 10 | 74002084 | End Cap, Door (blk) | 26 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 26 |
|
Immediately | $ 12.62 | |||
| 12 | 7744P105-60 | Trim, Bottom (blk)----na | 26 |
|
- |
