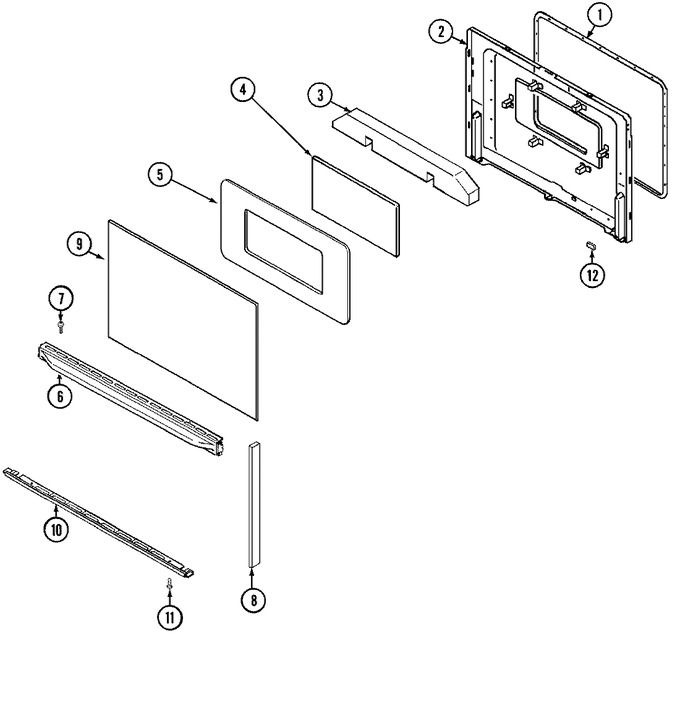

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	27		Immediately	$ 56.83
2	74003248		Lining, Door	27	Appelez-nous	-
3	74002458		Insulation, Door	27	Appelez-nous	-
4	74002459		Glass, Door (inner)	27	Appelez-nous	-
5	74002461		Baffle, Door	27	Appelez-nous	-
5	7101P209-60		Screw	27	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	27		Immediately	$ 12.62
6	74003429		Handle, Door (blk)	27			$ 93.87
7	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	27			$ 15.94
8	74003430		End Cap, Door (blk)	27			$ 59.35
9	74003431		Glass, Door (outer-blk)	27	Appelez-nous	-
10	74003432		Trim, Bottom (blk)	27	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	27		Immediately	$ 12.62
12	8010P085-60		Spacer, Rubber	27	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
