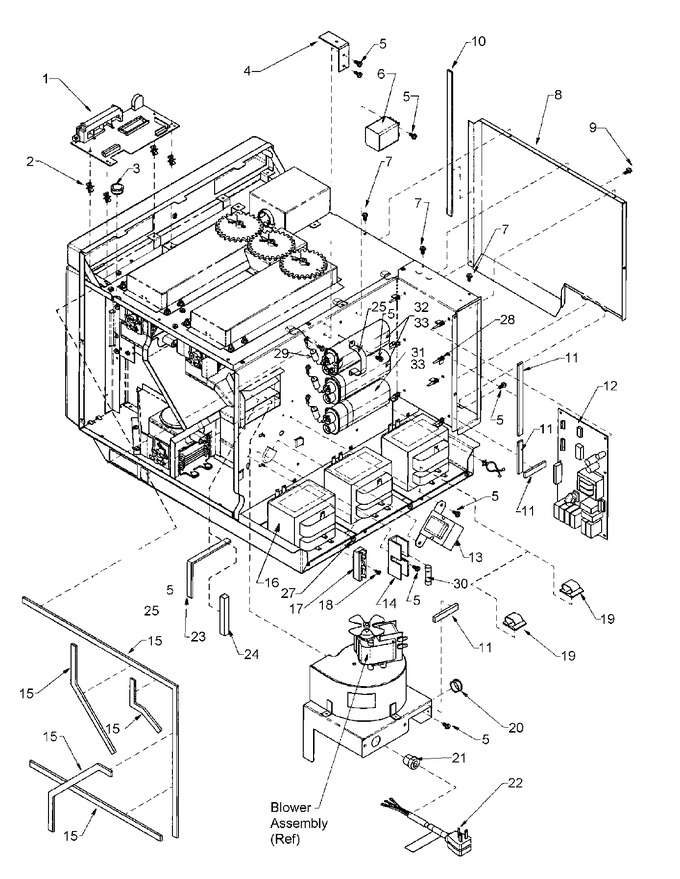

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	R0163318		Lv Board		Appelez-nous	-
002	M0585505		Support		Appelez-nous	-
003	12164101		Grommet-rubber		Appelez-nous	-
004	10853001		Brkt, Wire Support		Appelez-nous	-
005	WP489349		Screw-sm   (Replaces: M0216515)			Immediately	$ 7.09
006	C8873931		Relay-power		Appelez-nous	-
007	M0231717		Screw, Tf		Appelez-nous	-
008	NLA		Duct-exhaust		Appelez-nous	-
009	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
010	A3030301		Gasket		Appelez-nous	-
011	A3030301		Gasket		Appelez-nous	-
012	10763204		Hv Board		Appelez-nous	-
013	C8901507		Xfmr-auto		Appelez-nous	-
014	10091101		Block-fuse		Appelez-nous	-
015	A3030330		Gasket		Appelez-nous	-
016	10788602		Transformer-hv 60 Hz 208-230		Appelez-nous	-
017	B5677203		Block-term		Appelez-nous	-
018	M0234117		Screw-tr		Appelez-nous	-
019	WPM0104106		Clip, Cord   (Replaces: M0104106)				$ 7.00
020	A3293503		Bushing-snap		Appelez-nous	-
021	M0370011		Relief-strain		Appelez-nous	-
022	10098906		Power Cord		Appelez-nous	-
023	A3030302		Gasket		Appelez-nous	-
024	A3030311		Gasket		Appelez-nous	-
025	A4055405		Strap, Capacitor		Appelez-nous	-
027	WP90767		Screw-sm   (Replaces: M0216716)			Immediately	$ 7.04
028	M0590602		Support		Appelez-nous	-
029	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
030	14QBP25BAN		Fuse-25a   (Replaces: M0805201)		Appelez-nous	-
033	D8547935		Capacitor-doubler		Appelez-nous	-
999	10993301		Harness, Xfmr		Appelez-nous	-
999	10993401		Harness-hv		Appelez-nous	-
999	12161001		Harness, Wiring		Appelez-nous	-
